Indoor FTTH Drop Fiber Optic Cable 1 2 4 Fibers GJXH SM G652D G657A1 G657A2 LSZH White/...

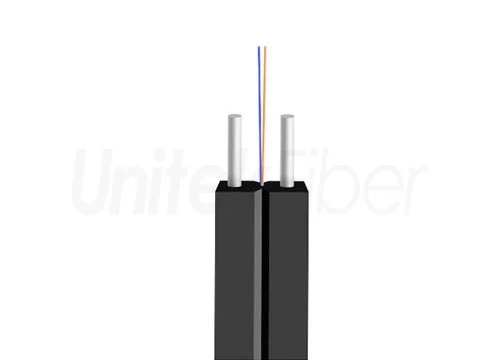

Indoor FTTH drop Fiber Optic cable is 2mm * 3mm design. It is applied for Fiber to The Home Application. FTTH drop fiber optic cable is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center and two parallel Fiber Reinforce Plastic (FRP) or steel wire strength members are placed at the two sides. The outer jacket is generally black and white LSZH, with a relatively small diameter and good flexibility.
Indoor FTTH Drop Fiber Optic Cable 1 2 4 Fibers GJXH SM G652D G657A1 G657A2 LSZH White/Black
FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm.
FTTH drop cable is use special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. Simple structure, light weight and high practicability. Novel flute design, easily strip and splice, simplify the installation and maintenance. Low smoke, zero halogen and flame retardant sheath.
Applications of FTTH drop cable
FTTH outdoor drop cable is a new type of fiber-optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.
For more information about gjxh cable, please feel free to contact us!
If you need any kinds of fiber optic, please contact us, as a professional fiber optic cable manufacturers, UnitekFiber is willing to offer you high quality products.
