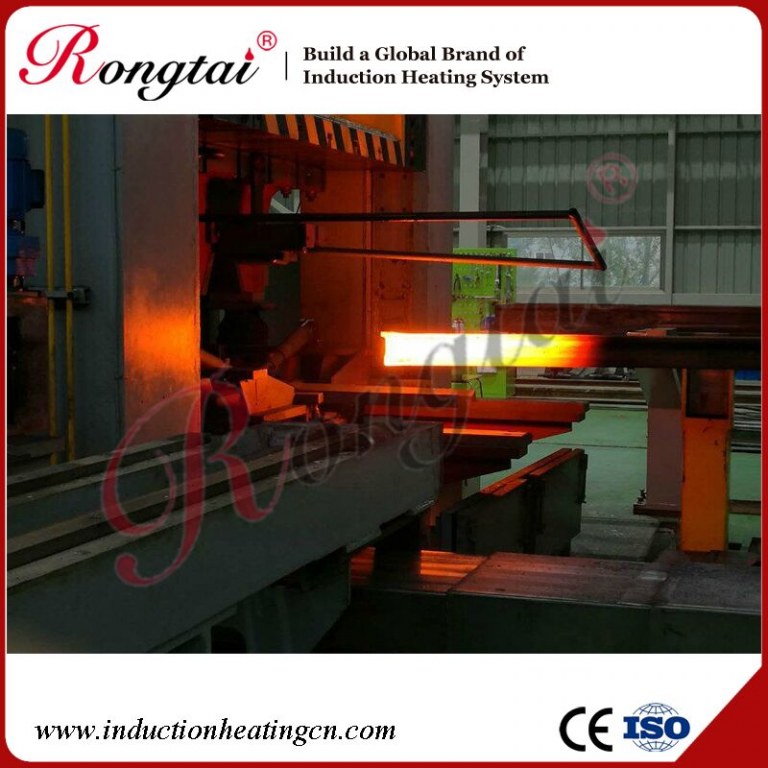

Induction Heating Furnace
Quantité : 100 Prix : 10000-1500000
1. 3 ton/hour steel induction furnace for foundry
Our furnace have high melting efficiency, good energy saving effect, good metal component uniformity, less burning loss, speedy temperature rise, is suitable for all kinds of metal melting.
2. Product parameters:
Items | 3T furnace parameters | Unit | Note: |
Furnace Part: | |||
Furnace Model | Steel Shell Coreless Induction Furnace | ||
Rated capacity | 3 | Ton | |
Max. Capacity | 3.5 | Ton | |
Induction CoilThickness | ≥6mm | mm | Red copper, extruded tube |
Titling Method | Hydraulic Tilting | ||
Electrical Part: | |||
Transformer Capacity | 3000 | KVA | |
Rated Output Power | 2500 | KW | |
Rated Input Frequency | 500 | HZ | |
Rectifier Circuit Form | 12 | Pulse | |
Power factor | COSΦ≥0.95 | ||
Starting successful rate | 100% | ||
Inlet voltage | 660 | V | |
Inlet voltage allowed fluctuation range | ±5% | V | |
Inlet Current | 1177 | A | |
MF current | 1350 | A | |
Output DC Voltage | 871 | V | |
Output MF Voltage | 3000 | V | |
Operation parameters | |||
Working noise | ≤80 | db | |
Tapping temperature | 1450 | ºC | |
Melting time | 55±5% | min/batch | |
Auxiliary time | 5 | Min/batch | |
Electric consumption | 550 kw.h±5%/t | kwh·t | Concentrate materials(20×20×20cm clean iron block), fulfill, count from the third batch, the rated temperature is 1450ºC. |
3. Items list:
No. | Items | Configuration | Amount |
1 | Series resonance power supply | 2500KW ,international quality standard | 1 |
2 | Open structure steel furnace layout (Germany structure) | 3.0T,Including furnace frame, hydraulic cylinder, induction coil, and magnet yoke. | 1 |
3 | Output copper | T2 copper | 1 set |
4 | Water cooled cable | Match 2500KW | 1 set |
5 | Hydraulic pump station | Medium is water hydraulic oil, customer prepare oil | 1 |
6 | Tilting furnace hydraulic work station | Rongtai | 1 |
7. Optional | Cooling system for power supply and furnace | Closed system and pump station | 1 set |
Cooling system control panel | Rongtai | 1 |
Personne à contacter : Padraic Pan, 0086 159 536 62321
