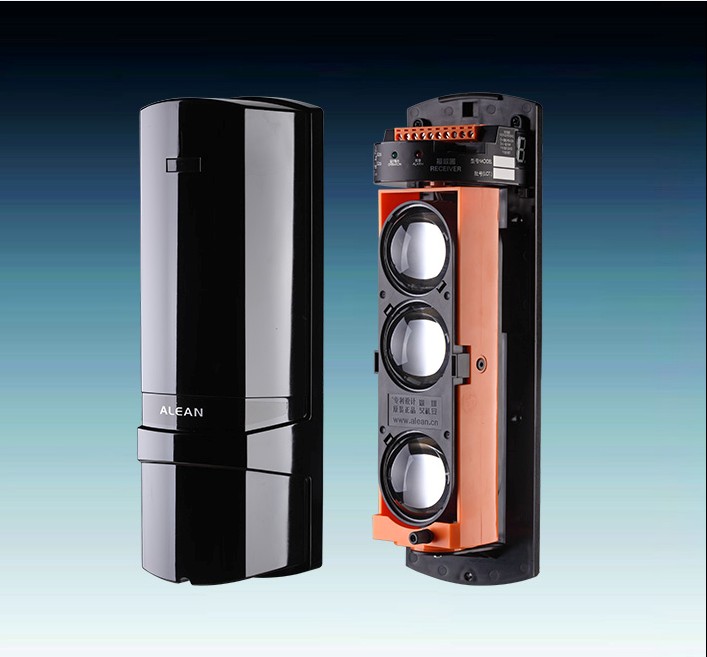

Infrared beam barrier detector
Quantité : 1 pair Prix : USD10-30
infrared beam barrier detector ABE
Features:
NC/NO relay output, compatible with other brand burglar alarm systems such as HONEYWELL, BOSCH, Paradox, GE and DSC, etc.
Easy alignment with visual LED indicator.
PC engineering plastic material.
Resistant to rain, fog, snow and frost.
IP degree: IP65
Built-in automatic adjustable strong light filtering system (up to 50,000 LUX), Good performance against direct sunlight, completely against fluorescent and car light
AGC circuit, the detector will automatically increase sensitivity when faced harsh environment.
Horizontal / vertical optical angle can be easy to adjust
Parameter:
|
Model |
ABE-50 |
ABE-100 |
ABE-150 |
ABE-200 |
ABE-250 |
|
Detecting distance(outdoor) |
50m |
100m |
150m |
200m |
250 |
|
Detecting distance(indoor) |
150m |
300m |
450m |
600m |
750m |
|
Detection method |
Simultaneous interruption of 3 infrared beams |
||||
|
Response speed |
50-700msec |
||||
|
Number of beams |
3 beams |
||||
|
Alarm output |
Switch signal output(NO/NC) |
||||
|
Power and Voltage |
DC12~24V ; AC11-18V |
||||
|
Current consumption |
100mAMax. |
||||
|
Operating temperature |
-25℃—55℃ |
||||
|
Humidity |
95% MAX |
||||
|
Tamper |
NC. 1B contact output，DC30V/0.5AMax. |
||||
|
Exterior dimension |
90mm*100mm*270mm |
||||
|
Weight |
1.9kg |
||||
If you have any questions or inquirys please contact me freely.
Contact: ken[at]alean.cn
Personne à contacter : Ken Yang, +86 0755 82590363
