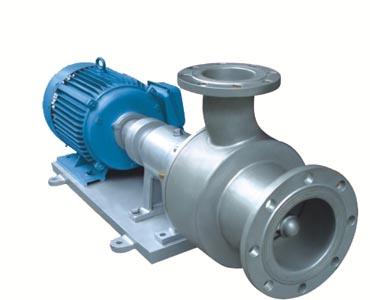

Inner Vane pump, Flat Vane Pump, Disc pump

Inner Vane pump, Flat Vane Pump, Disc pump

Introduction:

Due to its special function, it can operates in the harsh conditions more reliable, superior, more economical and more efficient. Most important is no destroy to the media. Suitable for conveying different viscosity medium and even high viscosity medium, containing particles which need to be protected from destruction and media that should be soft transported and not fit for high impact.

Application:

Suitable for conveying different viscosity medium and even high viscosity medium. Containing Solid particles as much as 75% (Can be designed to the requirement of 30-80MM particles) and the media need to protect against particle from destroyed medium that containing gas or air as 68%. Cotton pulp, wood pulp containing various fiber. Media should be soft transported and shouldn't be high impact and Sewage waste.

Characteristics:

Due to its special function, it can operates in the harsh conditions more reliable, superior, more economical and more efficient. Most important is no destroy to the medium which even can be fragile blood cells. When transport particle and long fiber waste without winding, there is No plug. Inner Vane pump guarantee uniformity of the fluid transport without dehydration and fiber loss. Inner Vane pump mechanical advantages is there's no impact, no pulse, no radial load, without wearing so-leaf pump do not need too many parts replacement and maintenance.

Working principle:

The principle is that it takes special plate as Vane, pump fluid medium from inlet and discharge to the outlet by its Physical viscous driven and special structure of Vane. Bob-type centrifugal Inner Vane pump deliveries rely on the laminar formatted by the driven of its physical viscous and the fluid medium.

Therefore, the media does not have any impact on pump flow line, Vane contact with the wall-flow Vane with a relatively static synchronous movement without friction. In the absence of the impact of media to undermine your product, it can protect the laminar flow pump, so Inner Vane pump can fundamentally solve the products destroyed, and the media on the body of the Vane wear plug Vane, produce such as pump cavitation common ills.

Technical parameters:

Note"S"is Assigned four-grade motor
