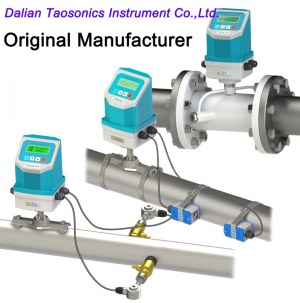

Integrated ultrasonic flow meter
Quantité : 1 Prix : USD220.00
|
Principle & Parameters |
|
|
Principle |
Transit-time |
|
Accuracy |
Flow meter: ±0.5%; Heat meter: ±2.0%. |
|
Output |
4~20mA analog |
|
OCT pulse |
|
|
Relay |
|
|
Input |
3 way 4~20mA analog input, acquisition signal of press and liquid level. |
|
Achieve heat measurement by connecting PT100 temperature sensors |
|
|
Interface |
RS485; MODBUS |
|
Pipe Material |
Steel, stainless steel, cast iron, copper, PVC, aluminum, etc. |
|
Caliber |
DN15mm~DN6000mm |
|
Straight Pipeline |
Upstream: 10D; Downstream: 5D; From the pump: 30D (D means outer diameter) |
|
Medium |
Single liquid that can conduct sound wave, such as water(-30℃~160℃). |
|
Velocity |
-12m/s~12m/s |
|
Special Cable |
Shielded twisted-pair cable, length≤50m. |
|
Temperature |
Main unit: -20℃~70℃; Transducers: -30℃~160℃ |
|
Protection Class |
IP68 |
|
Power Supply |
DC24V; AC85~264V; 50Hz |
|
Consumption |
1.5W |
Add: The South Industrial Park,Tangligou, Hongqi Street ,
Ganjingzi District, Dalian , China.
Email: sales01(at)tuf-2000.com
Skype: taosonics01(at)outlook.com
Tel: +86-411-84179922
HP: 180 0426 1213
Fax: +86-411-84179900
http://www.t3-1.com/english
http://www.tuf-2000.com/english/
Personne à contacter : Melon Sheng, 84179922
