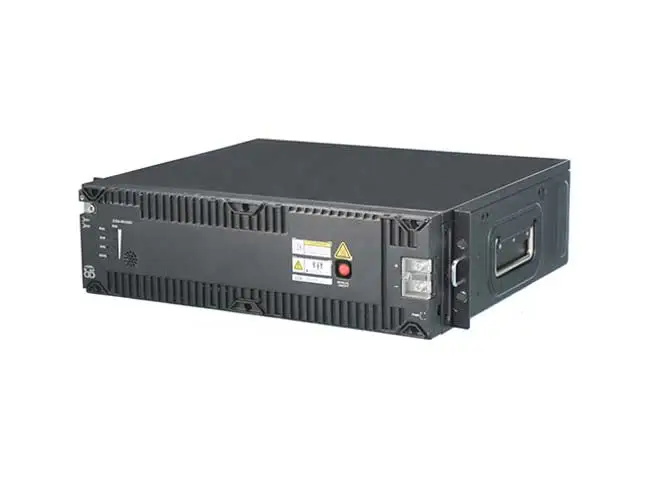

Intelligent Lithium Battery
Smart lithium backup power use of lithium iron phosphate cell, safe and reliable, support for old and new batteries, lithium phosphate prismatic battery mixed use, significantly reduce operating costs.
Specification of Intelligent Lithium Battery
|
Item |
Parameter |
Note |
|
Model |
48V 100Ah |
|
|
Pack Method |
15S 1P |
|
|
Rated voltage |
48V |
|
|
Rated capacity ±5% |
100Ah |
|
|
Rated energy ±5% |
4.8kWh |
|
|
Input voltage |
43.2V DC~58V DC |
Any value within the voltage range is |
|
Output voltage |
48V DC~57V DC |
Constant voltage discharge, the default is |
|
Maximum charging power |
4800W |
|
|
Maximum charging current |
100A |
|
|
Maximum discharge power |
4800W |
|
|
Maximum discharge current |
100A |
|
|
Constant voltage discharge regulation |
±0.6% |
|
|
Comm Port |
CAN/RS485 |
|
|
Interface parameters |
Power terminal: 2 M6 OT terminals |
|
|
Maximum number of parallel groups |
30 groups |
|
|
atmospheric pressure |
70kPa～106kPa |
|
|
Cooling way |
natural cooling |
|
|
Anti-theft function |
Software anti-theft function, gyroscope movement monitoring, etc. |
|
|
Alerts and protection capabilities |
Over temperature, low temperature, over current, short circuit, over charge, Over discharge, etc. |
|
|
Battery pack size |
441*399*129mm |
|
|
Battery box |
sheet metal |
|
|
Battery pack weight |
≈42kg |
|
Operation Interface of intelligent li ion battery
Feacture of Intelligent lithium phosphate solar battery
Parallel power expansion characteristics: N groups of parallel connections support maximum power P≤24kW. Please refer to the parallel application for specific calculations.
As one of the batteries manufacturers, We provide phosphate lithium battery, lithium battery phosphate, lithium phosphate rechargeable battery, lithium iron phosphate rv battery, 18650 lithium iron phosphate, off grid power systems for homes, etc. For more information, please feel free to contact us!
