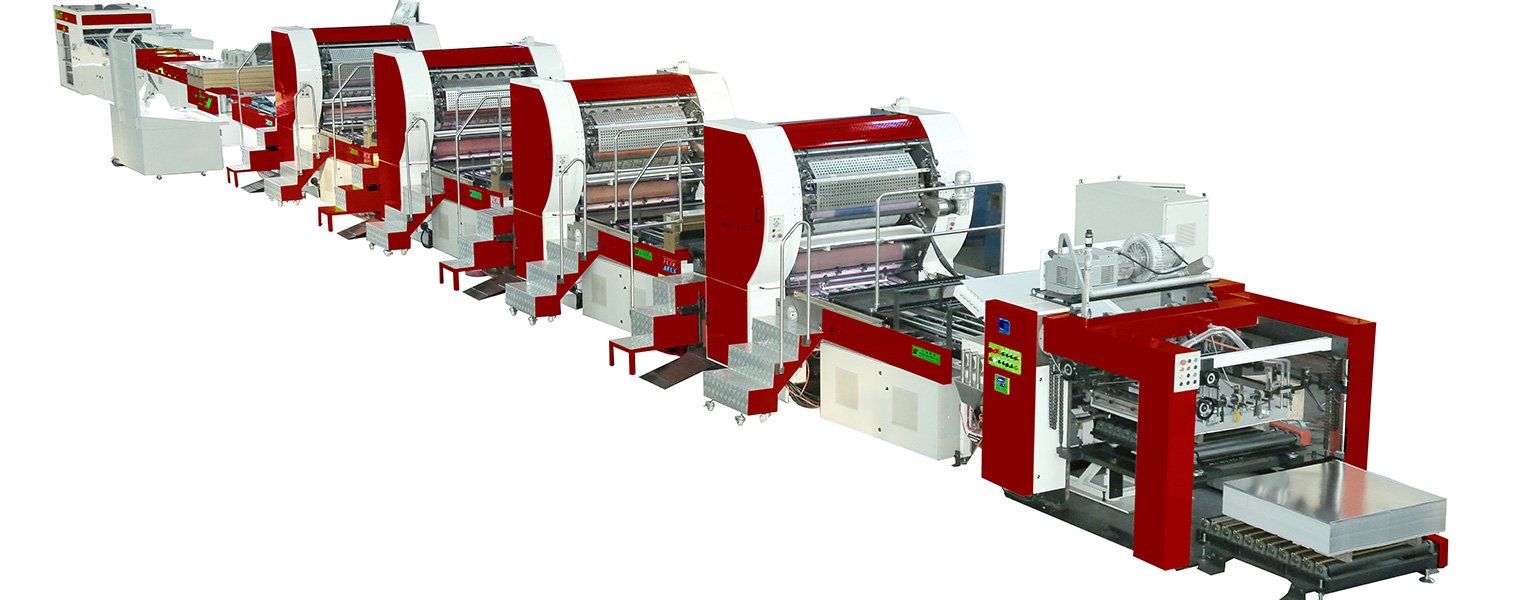

Intelligent RYYT 453 Series Metal Printing Machine
China's first intelligent metal colour printing machine comes from RYYT 453 series. Especially the upgraded 453 series achieve full automation, the series of metal printing press is intelligence, digital, and information, provide users with high efficiency, high performance, low cost of automatic metal printing production line. RYYT 453 series include 1-colour, 2-color, 3-colour, 4 color offset printing machine and as one of the metal decorating press manufacturers we sell 1-color, 2 color offset printing machine, 3-colour, 4-colour, multi-color machines at a suitable price.
RYYT 453 Series Color Printing Press Specifications
|
CONFIGURATIONS |
RYYT2453W/2-COLOR |
RYYT4453/4-COLOR |
RYYT6453/6-COLOR |
|
Maximum sheet size |
1145×950mm |
1145×950mm |
1145×950mm |
|
Minimum sheet size standard |
712×510mm |
712×510mm |
712×510mm |
|
Sheet thickness standard |
0.15-0.4mm |
0.15-0.4mm |
0.15-0.4mm |
|
Maximum printing area |
1135×945mm |
1135×945mm |
1135×945mm |
|
Size of printing plate |
1160×1040×0.3mm |
1160×1040×0.3mm |
1160×1040×0.3mm |
|
Size of pre-bar blanket |
1175×1135×1.9mm |
1175×1135×1.9mm |
1175×1135×1.9mm |
|
Gripper margin |
3-5mm |
3-5mm |
3-5mm |
|
Maximum mechanical speed |
7000 sheets/hr |
||
|
Maximum printing speed depending upon printing shop conditions and ingoing material quality |
|||
|
Height of infeed table |
916mm |
916mm |
916mm |
|
Maximum weight of feeder pile |
2.0 (ton) |
2.0 (ton) |
2.0 (ton) |
|
Power of main motor |
17(kw/unit)x2 |
17(kw/unit)x4 |
17(kw/unit)x6 |
|
Capacity of air pump |
80+100(m³/hr) |
80+100(m³/hr) |
80+100(m³/hr) |
|
Dimension of machine(LxWxH) Length without inspection table |
10750x3700x2460mm |
19050x3700x2460mm |
26914x3700x2460mm |
|
Total connected load of machine without dryers |
56kw |
104kw |
148kw |
|
Running pressing of air cylinder |
0.6-0.8Mpa |
||
|
Compressed air |
≥140m³/h |
||
|
CONFIGURATIONS |
New generation RYYT 4453/4-COLOR |
|
Maximum mechanical speed |
6500 sheets/hr Depending on production condition |
|
K Value |
yellow (Y) ≥ 30% |
|
magenta (M) ≥ 34% |
|
|
cyan (C) ≥ 38% |
|
|
black (BK) ≥ 45% |
If you want to know more about multi color offset machine price, please contact us.
