Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Internal bond strength (Scott type)

Quantité : 1   Prix : 1 000,00 €

http://www.shieldlance.com/

Product Description

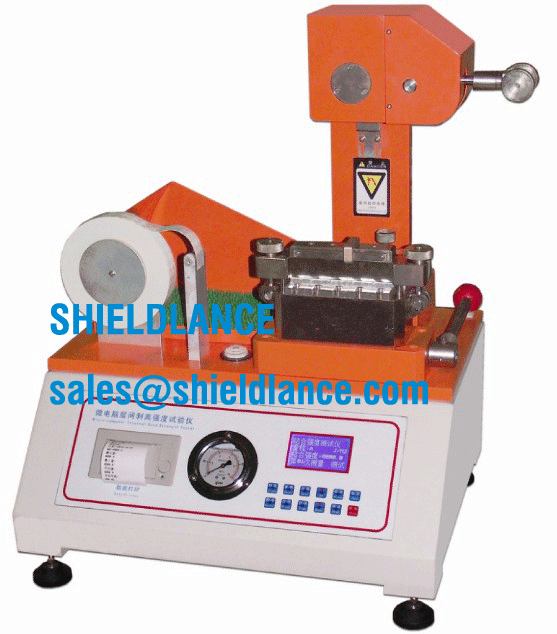

internal bond strength tester

internal bond strength tester

Internal bond strength (Scott type)

Application

Internal bond strength (Scott type) is used to test internal bond strength of paper and board,it can be used to test internal bond strenght of paper,paper composite material,film composite material, and so on.

Standard

GB/T 25203、ASTM T569 pm-00

Internal bond strength (Scott type)

Internal bond strength (Scott type)

Parameter

Sample size: 25.4mm*25.4mm

Sample clamp force: 0~400N(adjustable)

Impact angle: 90°

Resolution ratio: 0.001lbf/in²

Release way:Automatic release

Test range:A :(0~500)J/M2 B:(500~1000)J/M2

Desplay error: A:±1J/M2 B:±2J/M2

Unit: J/M2 、lbf/in² (interchange )

Control way:3.2in display

Pinter:thermal printer

Dimension:500m*400cm*650mm

Weight: 70KG

Parameter

Sample size:25.4mm*140mm

Balance:≤0.015mm

Sample thickness:(0.05~1.2)mm

Dimension:About 580*180*620mm

Weight:15kg

Localisation : , 510730 guangzhou,
Personne à contacter : Yunlong Li, 0086 20 82209969
