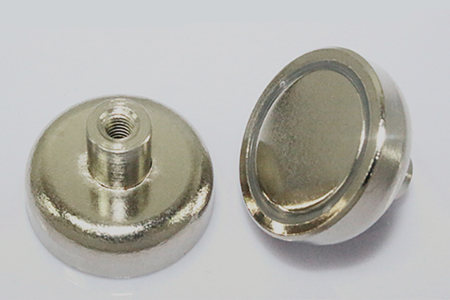

Internal Thread Neodymium Pot Magnets
Quantité : 500tons Prix : USD0.015-----USD100
Product Category: NdFeB pot magnets/internal threaded pot magnets
Product Features: strong holding force, pot magnets with internal thread,pot magnets with screw socket
Available Grade: N35-N54
Surface Treatment: NiCuNi, Zn, Cr, paint-coated... ..
Type-D: internal thread magnets, internal thread pot magnets, internal thread neodymium magnets, internal thread neodymium pot magnets, female thread pot magnets, pot magnets with female thread, NdFeB thread hole magnets, threaded hole magnets, the internal thread holding magnet, powerful internal thread magnets.
Thread magnets are more and more used today, which including internal thread magnets and external thread magnets. The screw thread can not be made on magnets, so thread magnets have to be made with help of other parts - that is the steel cups with the screw thread or steel pot with thread for the screw.The whole magnet assembly have more powerful magnetic strength than a naked magnet. The new formed magnetic system just threads magnets, also called as thread pot magnets which contain internal thread pot magnets and external thread pot magnets.
Under this category, we mainly introduce internal thread magnets or pot magnets with female thread. This permanent magnetic pot assembly are made by sticking a permanent magnet into a steel cup that with internal thread or female thread.Steel rings and hooks can be screwed into the threaded hole.We usually glue disc neodymium magnets into the steel cups.The steel cups can not only protect the disc NdFeB magnets but also ensure the neodymium disc magnets stronger magnetic force.Our neodymium internal thread pot magnets or internal thread NdFeB pot magnets are all made from standard property neo rare earth magnets, the internal thread magnets have higher holding force than others.
To meet the needs of different holding force, we provide a wide size range, the diameter of the internal pot magnets for sale is from 12mm to 75mm, the thickness is from 5mm to 18mm.The size of threaded hole is from M3 to M10.
If you just need a little holding force, you may think of ceramic internal thread magnets.
Our internal thread pot magnets have good market performance.Both of corrosion resistant ability and holding ability are better than those made by competitors.
Model |
D |
D1 |
M |
H |
h |
Attraction(kg) |
Dead Weight(g) |
D10 |
10 |
5.5 |
3 |
12 |
5 |
- |
- |
D12 |
12 |
6 |
3 |
13 |
5 |
- |
- |
D16 |
16 |
6 |
4 |
13 |
5 |
5.5 |
8 |
D20 |
20 |
8 |
4 |
15 |
7 |
9 |
17 |
D25 |
25 |
10 |
5 |
17 |
8 |
22 |
32 |
D32 |
32 |
10 |
6 |
18 |
8 |
34 |
47 |
D36 |
36 |
10 |
8 |
18 |
8 |
41 |
59 |
D42 |
42 |
12 |
8 |
20 |
9 |
68 |
87 |
D48 |
48 |
12 |
8 |
24 |
11.5 |
81 |
132 |
D60 |
60 |
14 |
10 |
30 |
15 |
113 |
259 |
Meank is a professional and reliable holding magnets manufacturer and holding magnets manufacturer, we provide plastic coated disc magnets, cylinder magnets for sale. Want to know more, please contact us for more information.
