IP camera outdoor surge protector
Quantité : 100000 Prix : 26.8usd
TQS-N2D-220

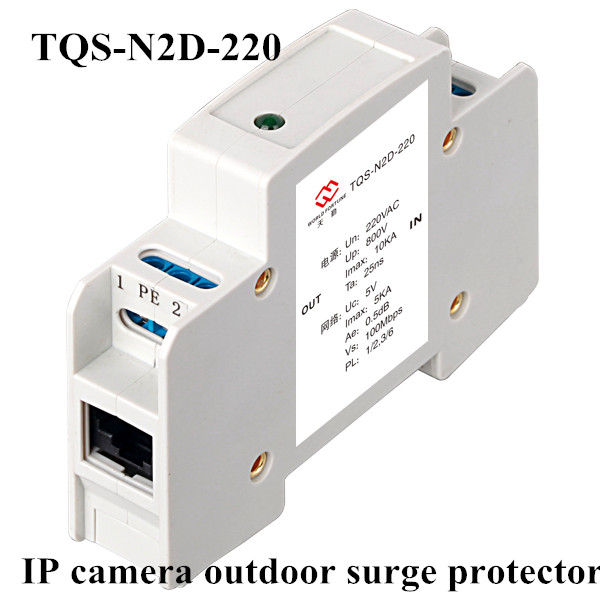

IP camera outdoor surge protector
1. Product features
l Low insertion loss
l Quick response
l Multi. Protection circuits, Gas-Tube + TVS technology
l Dual protection in Common mode and differential mode
l TVS array technology, low capacitance
l Multi-Strike Capability
l Comes with multi-channel models
2. Applications
l Lightning protection of network/IP cameras
l Security and monitor system
3. Technical data
|
|
Model |
TQS-N2D-220 |
|
|
Network |
Nominal operating voltage Un |
5V |
|
|
Nominal discharge current In (8/20μs) |
3KA |
||
|
Maximum discharge current Imax (8/20μs) |
5KA |
||
|
Protection level Up (8/20μs,3KA） |
≤20V |
||
|
Response time Ta |
≤1ns |
||
|
Transmission rate |
100Mbps |
||
|
Insertion loss |
≤0.5dB |
||
|
Connector type |
RJ45 |
||
|
Power |
Nominal operating voltage Un |
220V |
|
|
Maximum continuous operating voltage Uc |
385V |
||
|
Nominal discharge current In (8/20μs) |
5KA |
||
|
Maximum discharge current Imax (8/20μs) |
10KA |
||
|
Protection level Up (8/20μs,3KA） |
≤900V |
||
|
Response time Ta |
≤1ns |
||
|
Connector type |
Crimping |
||
|
Mechanical parameters |
Dimension |
112*60*25mm |
|
|
Weight |
150g |
||
|
Mounting type |
Series connected before the protected equipments |
||
|
Housing material |
Aluminum |
||
|
Index of protection |
IP20 |
||
|
Operating environment |
Temperature: -40—+85℃ humidity: ≤95% |
||
|
Others |
Warranty |
Five-year warranty, three-year replacement |
|
|
Related items |
TQS-N2-24, TQS-N2-12, TQS-N2-220, TQS-N2D-12, TQS-N2D-24 |
||
