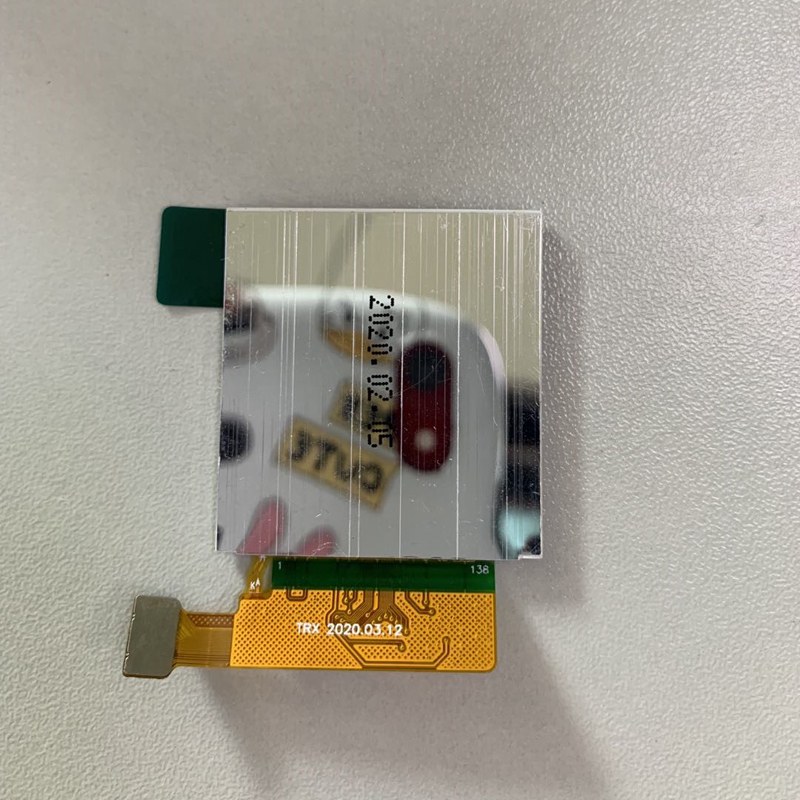

IPS 1.54 Inch 240x240 SPI Interface Samll TFT LCD Display
Prix : 3-200 USD
Kingtech 1.54inch 240x240 TFT LCD module is a small size display. The 1.54inch display screen is IPS/free/wide/all viewing angle.
This display supports SPI interface. The TFT display does not have existing resistive touch and capacitive touch, but we can custom LCD screens according to customer requirements. This 1.54inch display can be used for smartwatches and industrial device.
Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests will be welcomed.
Features of IPS 1.54 Inch 240x240 SPI Interface Small TFT LCD Display
240x240 resolution
Square display
Can custom resistive and capacitive touch screen
SPI interface
Application is for smartwatch
IPS TFT LCD display
Full/wide/all viewing angle
Specification of IPS 1.54 Inch 240x240 SPI Interface Small TFT LCD Display
|
Item |
1.54inch 240x240 TFT LCD module |
|
Model No |
PV15401KLD24D |
|
Resolution |
240x240 |
|
Outline Dimension |
31.52(H)x33.72(W)x1.85(T) |
|
Active Area(mm) |
27.72(H)x27.72(W) |
|
Interface |
3-Line SPI |
|
Viewing Angle |
All |
|
Driving IC |
ST7789V |
|
Display Mode |
Transmissive / Normally Black |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-30℃~80℃ |
|
Brightness |
300nits |
|
Touchscreen |
Can custom Capacitive touch panel |
Application of IPS 1.54 Inch 240x240 SPI Interface Small TFT LCD Display
The 1.54inch 240x240 square TFT IPS LCD module can be used for medical devices, handheld equipment, industrial control, smart home and smartwatch.
Kingtech is one of the leading lcd display supplier, we provide 1.54inch touch screen, crystal display and etc. Want to know more? Please contact us.
