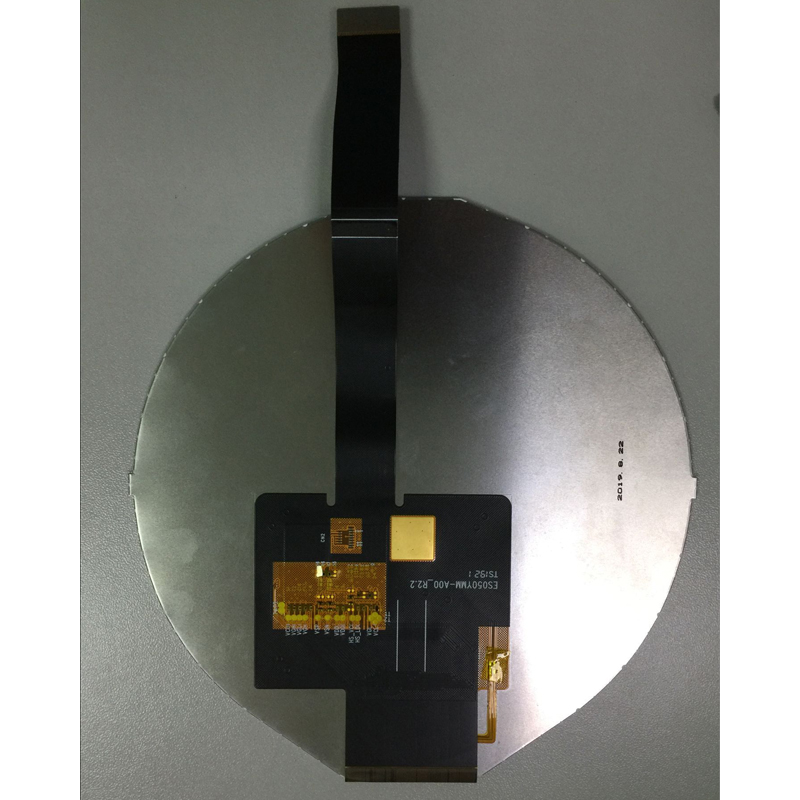

IPS 5.0 Inch 1080x1080 MIPI Interface Round TFT Display
Prix : 3-200 USD
Kingtech 5inch round IPS full viewing angle TFT LCD display is our most leading product. The 5inch resolution is very high, it's 1080x1080. It has an existing HDMI Board. The HDMI board can be connected to a raspberry pi. Currently, the 5inch LCD module is one of the biggest round display.
Kingtech Diaplay, as one of LCD display panel manufacturers, has achieved great progresses in the field of LCD production. We promoise that we will provide the customers with qualified standard LCD dispaly and satisfying one-stop services. Any requests will be welcomed.
Features of IPS 5.0 Inch 1080x1080 MIPI Interface Round TFT Display
All/Free/Wide viewing angle
1080x1080 resolution
Round Circular
IPS type
High brightness
HDMI Board
Specification of IPS 5.0 Inch 1080x1080 MIPI Interface Round TFT Display
|
Item |
5inch 1080x1080 round module display |
|
Model No |
PV05003SYS50B |
|
Resolution |
1080x1080 |
|
Outline Dimension |
136.531(W)x132.208(H)x1.98(T) |
|
Active Area(mm) |
127.008(H)x127.008(V) |
|
Interface |
MIPI |
|
Driver IC |
HX8399C |
|
Viewing Angle |
All |
|
Brightness |
400nits |
|
LED life |
30000h |
|
Display Mode |
Transmission / Normally Black |
|
Operating Temperature |
-20℃~60℃ |
|
Storage Temperature |
-30℃~75℃ |
|
Touchscreen |
Capacitive touchscreen |
|
Board |
Convert/HDMI board |
Application of IPS 5.0 Inch 1080x1080 MIPI Interface Round TFT Display
The 5inch 1080x1080 circular display has a wide application field. It can be used for the thermostat, POS machine, automotive device, handheld device, industrial control, and smart home equipment.
Kingtech is one of the leading lcd panel supplier, we provide 5.0 ips display, lcd 5 inch hdmi, oled display module and etc. Want to know more? Please contact us.
