Irrigator PU Layflat Hose
Inner tube : smooth PU tube
Reinforcement: Circular woven polyester jacket
Cover: ribbed PU cover
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Length: 50m, 100m, 200m, other lengths available per request
Our lay flat irrigation tube hose are made from 100% high-strength polyester circular woven and imported PU compound. We use a single homogenous construction without any glues or adhesives. Our Irrigator PU layflat hoses is good in UV resistance and kink resistance.

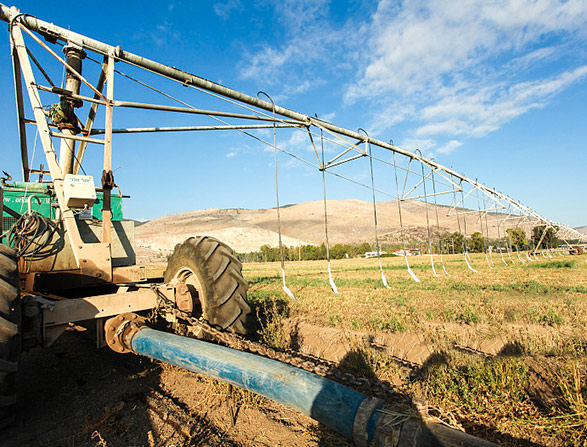

Our irrigator PU layflat hose are widely used with irrigator machine and tractor in agriculture field.
Specification of Irrigator PU Layflat Hose
ID |
Wall Thickness |
Weight |
WP |
BP |
|||
Inch |
mm |
Inch |
mm |
lbs/ft |
kg/m |
PSI/bar |
PSI/bar |
1 1/2" |
38+1.5 |
0.09" |
2.2 |
0.22 |
0.33 |
300PSI/20bar |
900PSI/60bar |
2" |
50.8+1.5 |
0.11" |
2.7 |
0.28 |
0.41 |
300PSI/20bar |
900PSI/60bar |
2 1/2" |
63.5+1.5 |
0.11" |
2.7 |
0.39 |
0.58 |
300PSI/20bar |
900PSI/60bar |
3" |
76+1.5 |
0.11" |
2.7 |
0.5 |
0.75 |
250PSI/17bar |
750PSI/50bar |
3 1/2" |
92+2.0 |
0.13" |
3.2 |
0.65 |
0.97 |
180PSI/12bar |
540PSI/36bar |
4" |
103+2.0 |
0.13" |
3.2 |
0.76 |
1.14 |
180PSI/12bar |
540PSI/36bar |
4 1/2" |
117+2.5 |
0.13" |
3.2 |
0.84 |
1.25 |
180PSI/12bar |
540PSI/36bar |
5" |
127+2.5 |
0.13" |
3.2 |
0.95 |
1.42 |
180PSI/12bar |
540PSI/36bar |
6" |
153+2.5 |
0.14" |
3.4 |
1.16 |
1.73 |
180PSI/12bar |
540PSI/36bar |
