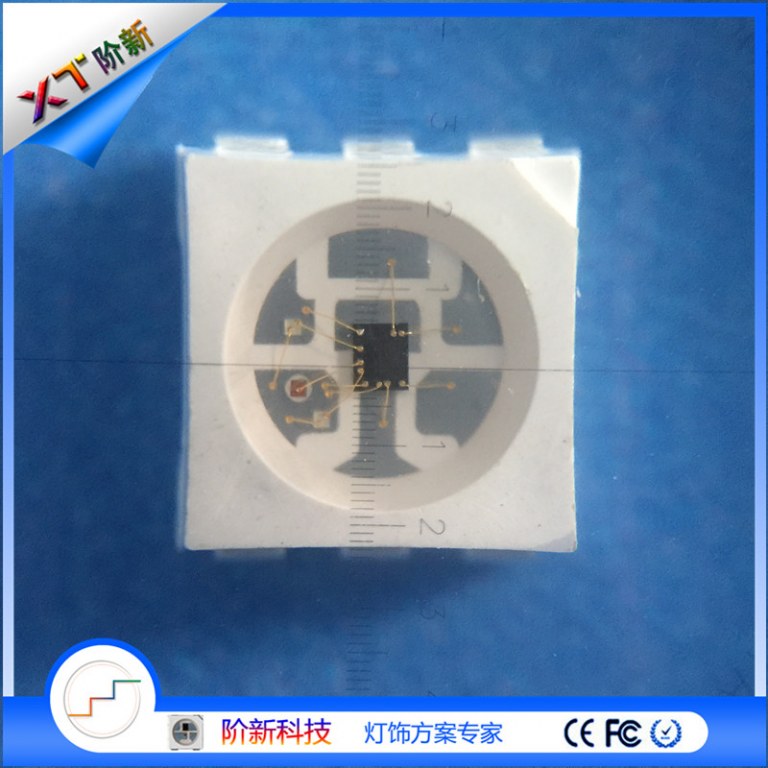

Jercio Individually addressable SK9822( double line transfer) individually addressable...

1. Product Overview :

SK9822 is a two-wire transmission channel three (RGB) driving intelligent control circuit and the light emitting circuit in one of the LED light source control. Products containing a signal decoding module, data buffer, a built -in constant current circuit and RC oscillator; CMOS, low voltage, low power consumption; 256 level grayscale PWM adjustment and 32 brightness adjustment; use the double output, Data and synchronization of the CLK signal, connected in series each wafer output action synchronization.

2. Main Application Field:

9679. Full color LED string light, LED full color module, LED super hard and soft lights, LED guardrail tube, LED appearance / scene lighting

9679. LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment etc..

1. 3. Description:

9679. Top SMD internal integrated high quality external control line serial cascade constant current IC; 5V application; default on electric lights;

9679. Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

9679. The two-wire synchronous control.

●The three RGB output control, 8Bit (256) color; 5Bit (32) to adjust the brightness;

9679. The three constant current drive, self detection function specific signal

9679. The maximum frequency of 30MHZ serial data input

9679. The double data transmission, built-in support uninterrupted oscillation PWM output, can maintain a static image.
