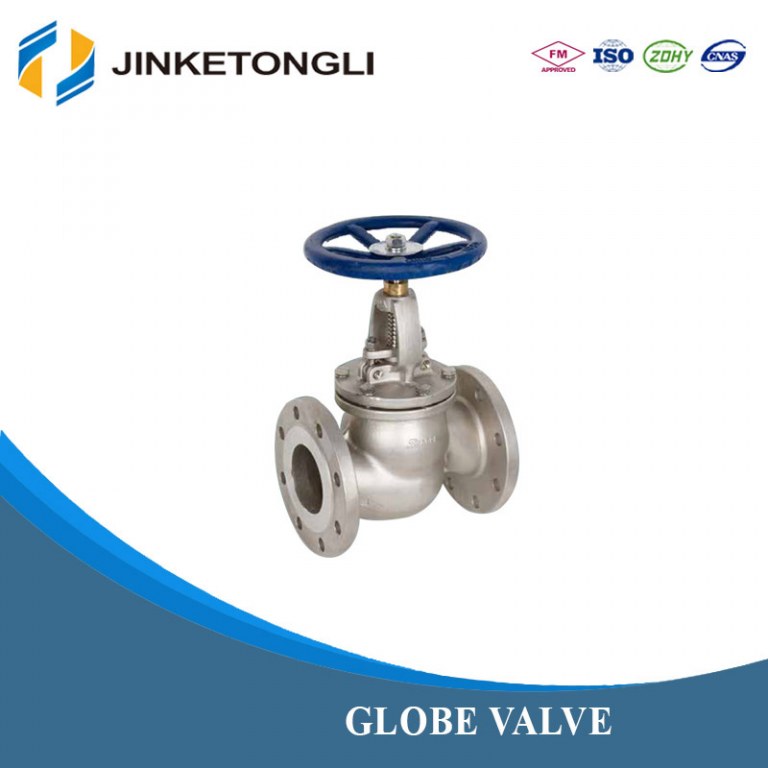

JKTL stainless steel globe valve price
JKTL stainless steel globe valve price
| No. | Part Name | Qty | Material |
| 1 | Body | 1 | 316 Stainless Steel ASTM A351CF8M |
| 2 | Disc | 1 | 316 Stainless Steel ASTM A351CF8M |
| 3 | Seat Ring | 1 | 316 Stainless Steel ASTM A351CF8M |
| 4 | Stem | 1 | 316 Stainless Steel |
| 5 | Bonnet Bolt | 1 | 304 Stainless Steel |
| 6 | Gasket | 1 | 15%R+PTFE |
| 7 | Bonnet | 1 | 316 Stainless Steel |
| 8 | Gland Packing | 1 | PTFE |
| 9 | Pin | 1 | 304 Stainless Steel |
| 10 | Gland Sleeve | 1 | PTFE |
| 11 | Eye Bolt | 1 | 304 Stainless Steel |
| 12 | Gland | 1 | 316 Stainless Steel |
| 13 | Nut | 1 | 304 Stainless Steel |
| 14 | Yoke Sleeve | 1 | Brass |
| 15 | Hand-wheel | 1 | Ductile Iron |
| 16 | Washer | 1 | 304 Stainless Steel |
| 17 | Nut | 1 | 304 Stainless Steel |
| Size | A | B | C | D | E | F | G | H | I | Num of Bolt Holes |
| 1/2 | 0.59 | 4.25 | 7.32 | 3.5 | 2.38 | 1.38 | 0.43 | 5.51 | 0.625 | 4 |
| 3/4 | 0.79 | 4.61 | 7.32 | 3.88 | 2.75 | 1.69 | 0.43 | 5.51 | 0.625 | 4 |
| 1 | 0.98 | 5 | 8.35 | 4.25 | 3.12 | 2 | 0.43 | 5.51 | 0.625 | 4 |
| 1½ | 1.57 | 6.5 | 9.69 | 5 | 3.88 | 2.88 | 0.56 | 6.29 | 0.625 | 4 |
| 2 | 1.97 | 7.99 | 9.92 | 6 | 4.75 | 3.62 | 0.62 | 7.87 | 0.75 | 4 |
| 2½ | 2.56 | 8.5 |
