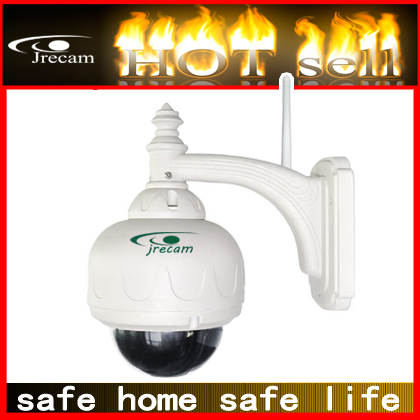

Jrecam camera surveillance net ptz network camera

ITEM

IP CAM （JN6031W）

Image Sensor

Mage sensor

1/5" Color CMOS Sensor

Display

640 x 480 (300K Pixels)

Lens

f: 3.6mm, F: 2.4 (IR Lens)

Mini.illumination

0.5 Lux

Lens

Lens Type

Glass Lens

Viewing Angle

90 Degree

Audio

Microphone

Without the microphone

Domain name

Server

MSN server/ DDNS server

Video

Image Compression

MJPEG

Image Frame Rate

15 FPS(VGA),30FPS(QVGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

rtical / Horizontal

mode

50Hz, 60Hz or Outdoor

Video Parameters

Brightness, Contrast

Communication

Ethernet

One 10/100Mbps RJ-45

Supported Protocol

HTTP/DHCP/IP/TCP/UDP/FTP/ PPPoE/UPnP

Mobilephone monitor

Support Iphone/Ipad/3G phon smartphone

Wireless Standard

IEEE 802.11b/g

Wireless Standard

802.11b: 11Mbps(max.) 802.11g: 54Mbps(max.)

Wireless Security

64/128-bitWEP Encryption

Physical

Pan/Tilt Angle

Horizontal: 360° & Vertical: 90°

Infrared Light

22 IR LEDs, Night visibili to 20 Mete

Product size

205(L) x220(W) x120mm(H)

Gross Weight

1800g/pcs (packing size: 196x165x123mm)

Net Weight

1208.5g/pcs (only product)

Power

Specification

DC 5V/2.5A 1.8 meter

Power Consumption

5 Watts

Environment

Operate Temper

0°～ 55°C (14°F～122°F)

Operating Humidity

20% ～ 85% non-condensing

Storage Temper

-10°C ～ 60° (14°F ～140°F)

Storage Humidity

0% ～ 90% non-condensing

PC Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

512MB or above (suggested 1.0GHz)

Display card

64M or above

Supported OS

Microsoft Windows XP/Vista/Windows7

Browser

IE 6.0, IE7.0 IE8.0 firefo .0 .Google

Certification

CE,FCC,RoHS

Warranty

Limited 1-year warranty
