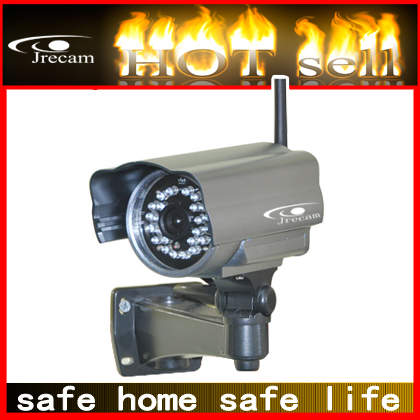

Jrecam home security cameras systems outdoor wireless network camera

Model Specification

Image Sensor

Image Sensor

1/4" Color CMOS Sensor

Disaplay Resolution

640 x 480 Pixels(300k Pixels)

Lens

f: 3.6mm, F: 2.4 (IR Lens)

Mini. Illumination

0.5Lux

Lens

Lens Type

Glass Lens

Viewing Angle

67 Degree

Audio

Input

Built-in Microphone

Output

Built-in Speaker

Audio Compression

ADPCM

Video

Image Compression

MJPEG

Image Frame Rate

15fps(VGA),30fps(QVGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz or Outdoor

Video Parameters

Brightness, Contrast

Communication

Ethernet

One 10/100Mbps RJ-45

Supported Protocol

HTTP,FTP,TCP/IP,UDP,SMTP,DHCP, S

Wireless Standard

IEEE 802.11b/g

Data Rate

802.11b: 11Mbps(Max.), 802.11g: 54Mbps(Max.)

Wireless Security

WEP&WPA Encryption

Physical

Pan/Tilt Angle

Horizontal: 270° & Vertical: 120°

Infrared Light

10 IR LEDs,Night visibility up to 8 metres

Dimension

110(L) x100(W) x108mm(H)

Gross Weight

768g (Color Box Size: 224x209x124mm)

Net Weight

418g ( accessories included)

Power

Power Supply

DC 5V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

5 Watts (Max.)

Environment

Operate Temper.

0° ~ 55°C (14°F ~ 122°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-10°C ~ 60° (14°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

PC Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista

Browser

IE 6.0, IE7.0,Firefox or other standard browsers

Certification

CE,FCC,RoHS

Warranty

Limited 2-year warranty
