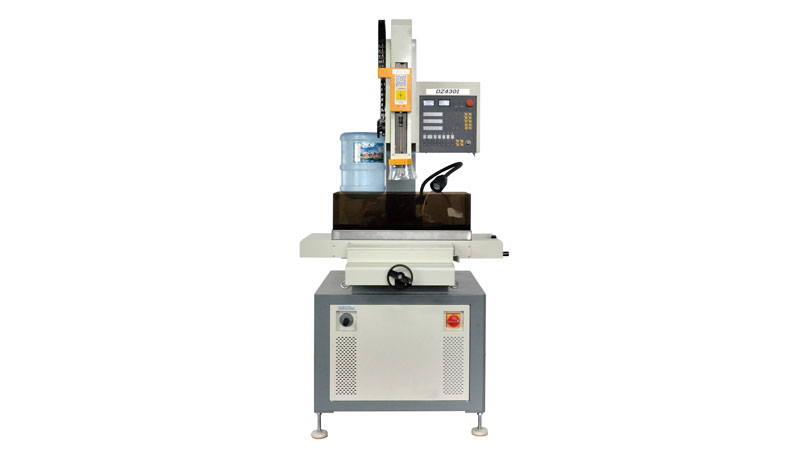

KD-DZ430I EDM Hole Drilling Machine 400×300mm
KD-DZ430I EDM small hole drilling machine Features
1. The maximum stroke of the Z axis is 380mm, which can hold 500mm long electrodes, and the waste of the electrode tube is minimized to about 100mm. The ultra-low wear circuit design is used to greatly improve the use ratio of the electrode tube.
2. The Z axis adopts a micro-stepping motor to realize fast feed speed, the whole stroke only takes about 10 seconds, greatly reduced the waiting time and improved the efficiency. The W axis, i.e. stroke of machine head, is manual control with fast speed.
3. Patented rotating head: the integrated design of the rotating head and the motor, use tungsten steel wear-resistant plate and multiple waterproof structures. The tapered sleeve is used to connect with the chuck to ensure the concentricity of the chuck rotation.
4. Own developed control system: one-key machining, centering function, fixed end surface function, expert database, digital sampling, adaptive servo tracking, function, flexible machining, high-speed machining, surface protection, spindle automatically goes back to the workpiece surface. It is suitable for the processing of fine holes of electrode copper tubes of Φ0.3 to Φ3.0, the processing of ultra-thick workpieces with a thickness of less than 300mm, and the processing of super-hard and special materials such as tungsten steel, aluminum, and AK80.
BIEM is one of the key edm machine manufacturer in china, we provide cnc edm machine, small edm machine, small hole machine, cnc edm drill, small hole edm drilling machine, high speed micro hole drilling edm machine, edm super drill machine, die sinking edm machine and etc. Want to know super drill machine price or more? Please contact us.
