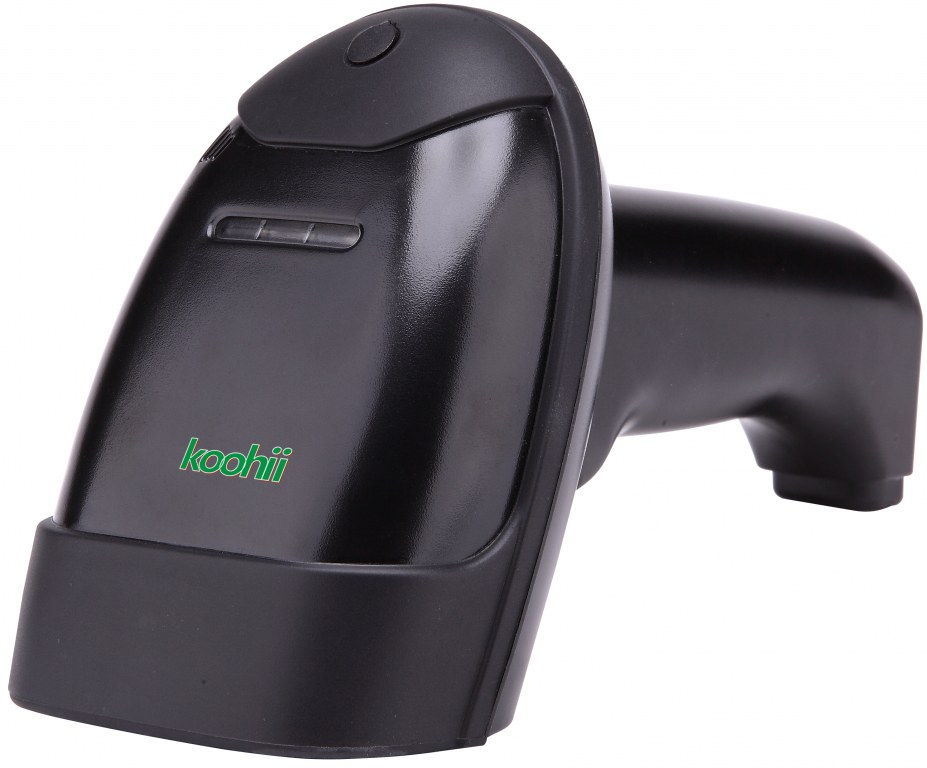

KH2000 2D Barcode Scanner
| Operational | |
| Light source | LED 650 nm |
|
Maximum output of an osram LED |
Maximum 100 mA |
| Depth of scan field | 0 mm – 230 mm (0" – 9") for 0.330 mm (13 mil) Bar code at default setting |
| Field of view |
49 mm W x 19 mm H (1.9” W x 0.8” H) at 20 mm (0.8”) 264 mm x 106 mm (10.4” W x 4.2” H) at 280 mm (11.0”) |
| Minimum Bar Width | 0.127 mm (5.0 mil) |
| Infrared activation |
Long range: 0 mm – 203 mm (0" – 8") from Window Short range: 0 mm – 101 mm (0" – 4") from Window |
| Barcode capability | Autodiscriminates all standard 1-D, RSS, PDF417, microPDF, maxiCode, data matrix, QR Code, UCC, EAN composites, postals, aztec (image transfer) – BMP, TIFF, or JPEG output |
| System interfaces |
PC keyboard wedge, RS232, IBM 468X/469X, stand alone keyboard, USB (low speed and full speed) |
| Print contrast | 20% Minimum reflectance difference |
| Number characters read | Up to 80 data characters on 1D; 1850 text characters for PDF417 |
| Beeper operation | 7 tones or no beep |
|
Indicators(LED) Default Settings |
Blue Unit Powered, Ready to Scan White Good Read |
| Mechanical | |
| Dimension | 110mml×79mmw×180mmh |
| Termination | RJ45 |
| Cable | 2m |
| Electrical safety | |
| Voltage | 5VDC 0.25V |
| Current | 2W(400mA@5V) Stay by : 800mA (160mA@5V)typical value |
| DC transformer | Class 2: 5VDC@1A |
| LED level | FCC Part 15, IEC60825-1, EN55022 Class B |
| Battery compatibility | IEC 60825-1: 1993+A1: 1997+A2: 2001 |
| ESD protect |
15KV |
| Environmental | |
| Operating temperature | -10 ºC ±60 ºC |
| Stroage temperature | -40 ºC±70 ºC |
| Humidity | 0% -95% RH |
| IP degree | IP54 |
| Drops | Designed to withstand 1.5 m drops |
| Light levels | Near100,000LUX |
Personne à contacter : Cherise Chan, +8607562605137
Bonne affaire : acheter au vendeur
Nous vous invitons à lire nos conditions générales d'utilisations. Vous pouvez aussi vous rendre sur nos FAQ et consulter notre page d'informations sur les risques liés à la contrefaçon.
|
Cette page concerne les importateurs et exportateurs de KH2000 2D Barcode Scanner Rechercher dans la catégorie : Biens d'équipement Rechercher dans la catégorie : kh2000, scanner, barcode |
20132 InformatiqueSignalez un abus
Tuesday 15 September 2026
Quantité : 5 - Prix : $ 3000
