KING NIPPLES

Applications of King Nipple Fittings

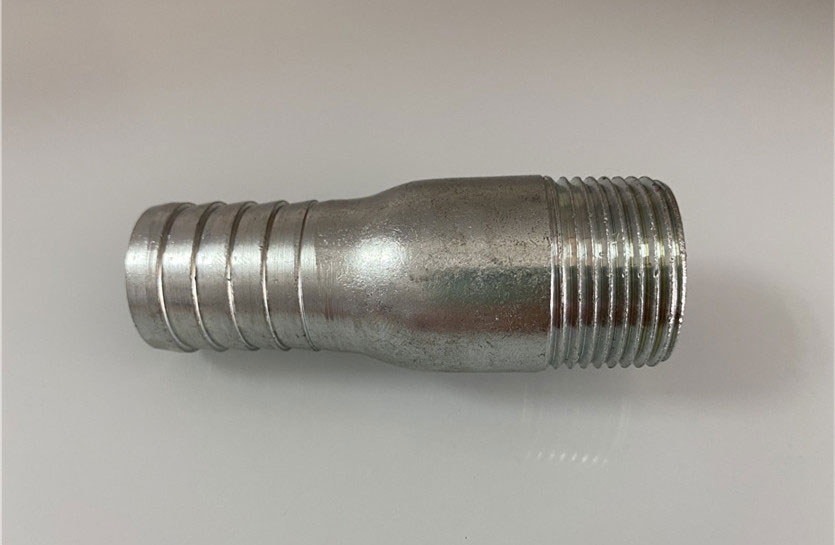

King Combination Nipples, also known as KC Nipples, are a versatile hose coupling for transitioning from a hose to pipe, equipment, valves, or strainers.

These end connections are mainly used for fluid service.

NPT, BSPT male thread is standard.

King combination nipples, a kind of threaded nipple fitting, are also available in a grooved end or with a beveled end for welding.

Plated steel prevents rust and weathering.

Install directly on equipment and then slide the hose onto the stem to eliminate the need for a female swivel in permanent installations.

King nipple are recommended for low-pressure discharge and suction service for compatible liquids. They are not for compressible products such as air or nitrogen on sizes ¼" and above.

King Combination Nipples are not recommended for steam.

Service for King Nipple Pipe Fitting

The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult the factory for recommendations.

According to R.M.A.'s announcement on suction and discharge hoses, the connection length of any size hose should be tested at ½ times the working pressure and kept for 15 minutes without leakage or coupling movement.

For customers with different needs on King nipples / King combination nipple sizes, SANVO & Fittings, as a professional pipe nipple manufacturer, provides you with the following available sizes of pipe nipples: 1/8 ", 1/4 ", 3/8 ", 1/2 ", 3/4 ", 1 ", 1-1/4", 1-1/2 ", 2 ", 2-1/2 ", 3 ", 4 ", 5", 6 ".

As a professional pipe fitting manufacturer, We provide double threaded nipple, adapter insert, one side threaded nipple, king nipple reducer, insert adapter and etc. want to know more types of nipple fittings, contact us.
