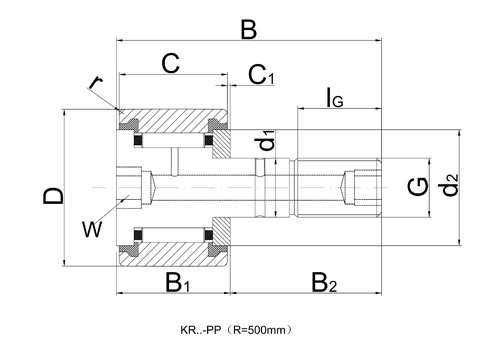

KR 72 PP Cam Follower
Specifications of KR 72 PP Cam Follower
|
Designation |
|
|
KR72PP |
|
(Mass)m≈g |
|
|
1010 |
|
Dimensions |
D |
|
72 |
|
|
d1 h7 |
|
24 |
|
Tighthening torque MA [Nm]Grease fitting |
B |
|
80 |
|
B1 max |
|
30.6 |
|
|
B2 |
|
49.5 |
|
|
B3 |
|
11 |
|
|
C |
|
29 |
|
|
C1 |
|
0.8 |
|
|
r min |
|
1.1 |
|
|
d2 |
|
44 |
|
|
d3 |
|
4 |
|
|
G |
|
M24X1.5 |
|
|
LG |
|
25 |
|
|
W2) |
|
14 |
|
|
Eccentric sleeve |
de h9 |
28 |
|
|
|
Be |
22 |
|
|
|
e |
1 |
|
|
|
|
NIPA3X9.5 |
|
|
|
|
220 |
|
|
Basic load rating |
Basic dynamic load rating Crw [N] |
|
27800 |
|
|
Basic static load rating Corw [N] |
|
52800 |
|
Fatigue load limit Curw [N] |
|
|
7150 |
|
Rotating speed nDG [min-1] |
|
|
1900 |
|
|
|
|
|
|
|
|
|
|
If you want to buy our high quality bearings, leave us a message.
