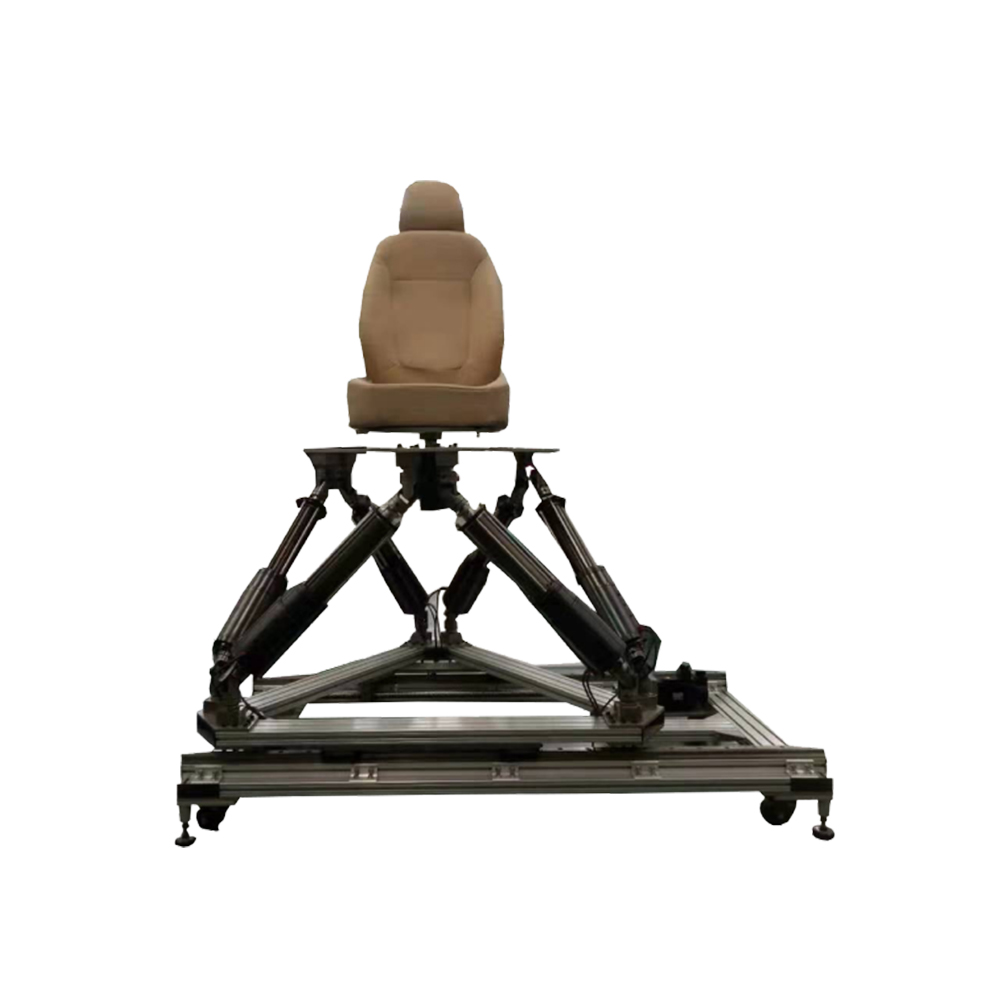

KRD61 6-DOF Test Table
Prix : 100USD
KRD61 series 6-DOF test table is six-degree-of-freedom multi-functional closed-loop servo motion simulation test equipment. It is applied to provide the user's system single 6-DOF (X, Y, Z, α, β, γ) motion of longitudinal, horizontal, vertical, roll, pitch, and heave. This multi axial simulation table can swing periodically according to the set amplitude and frequency, and can also import the road spectrum to track the movement.
KRD61 series 6 dof table can be widely used in testing or training simulators in the fields of flight, ship, helicopter, automotive, take-off and landing, train driving, earthquakes, movies, entertainment equipment, etc. It can even be used for docking of space spacecraft and refueling docking of aerial tankers. In the processing industry, it can be made into six-axis linkage machine tools, intelligent robots, etc.
FEATURES OF KRD61 6-DOF TEST TABLE
Large bearing capacity, the equipment can bear the maximum load of 10,000kg
·
Remote control function and can realize the transmission of specified data
·
Fully digital control technology: adopt a fully digital control loop, the 6-DOF positive and negative solution, position loop, speed loop and current loop are all realized digitally, avoiding the interference caused by analog circuits
·
It can realize posture simulation, sine wave simulation, single-DOF motion, and multiple-DOF composite motion
·
It can realize road spectrum filtering, road spectrum, wave spectrum, and flight spectrum replication
·
With abnormal alarm module, the program will automatically alarm and locate the specific module if the hardware module in the system fails
·
Multiple safety protection: in addition to speed and acceleration protection in software, the equipment also has limited voltage protection, overcurrent protection, limit protection and other protective measures in electrical aspects
·
COMPOSITION OF KRD61 6-DOF TEST TABLE
KRD61 hexapod table is mainly composed of three parts: mechanical structure, electrical control system, and measurement and control software.
The 6-DOF simulation table includes an upper platform, a lower platform, an upper hinge, a lower hinge, and a servo actuator. The servo actuator is composed of an electric cylinder and a servo motor. The servo actuator receives the control signal of the servo control system, performs work on the platform, and enables the upper platform to realize the specified simulation movement.
For more information about test equipment mechanical and vibrating shaker table, please feel free to contact us!
