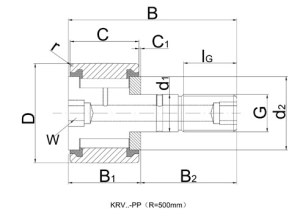

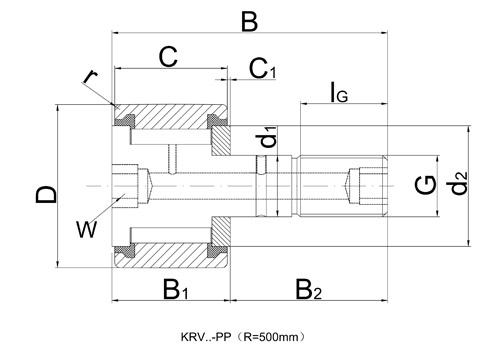

KRV 16 PP/ CF 6 VBUUR Cam Follower
Specifications of KRV 16 PP/ CF 6 VBUUR Cam Follower
Designation |
KRV16PP |
||
CF6VBUUR |
|||
(Mass)m≈g |
19 |
||
Dimensions |
D |
16 |
|
d1 h7 |
6 |
||
B |
28 |
||
B1 max |
12.2 |
||
B2 |
16 |
||
B3 |
|
||
C |
11 |
||
C1 |
0.6 |
||
r min |
0.15 |
||
d2 |
12.5 |
||
d3 |
|
||
G |
M6(X1) |
||
LG |
8 |
||
W2) |
- |
||
Eccentric sleeve |
de h9 |
- |
|
Be |
- |
||
e |
- |
||
Grease fitting |
NIPA1 |
||
Tighthening torque MA [Nm] |
3 |
||
Basic load rating |
Basic dynamic load rating Crw [N] |
4800 |
|
Basic static load rating Corw [N] |
6500 |
||
Fatigue load limit Curw [N] |
940 |
||
Rotating speed nDG [min-1] |
3800 |
