KRV 32 PP/ CF 12-1 VBUUR Cam Follower
Specifications of KRV 32 PP/ CF 12-1 VBUUR Cam Follower
|
Designation |
KRV32PP |
||
|
CF12-1VBUUR |
|||
|
（Mass）m≈g |
101 |
||
|

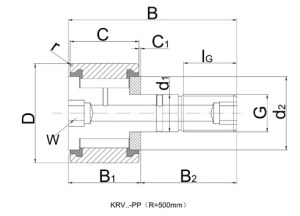

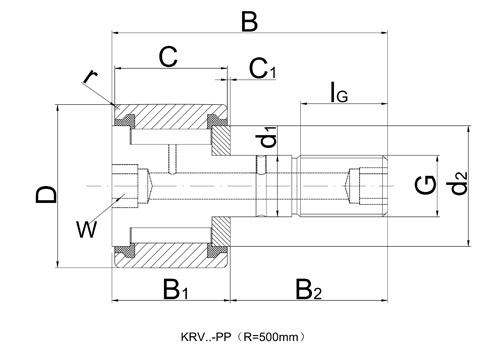

Dimensions |
D |
32 |
|
|
d1 h7 |
12 |
||
|
B |
40 |
||
|
B1 max |
15.2 |
||
|
B2 |
25 |
||
|
B3 |
6 |
||
|
C |
14 |
||
|
C1 |
0.6 |
||
|
r min |
0.6 |
||
|
d2 |
23 |
||
|
d3 |
3 |
||
|
G |
M12X1.5 |
||
|
LG |
13 |
||
|
W2) |
6 |
||
|
Eccentric sleeve |
de h9 |
- |
|
|
Be |
- |
||
|
e |
- |
||
|
Grease fitting |
NIPA1X4.5 |
||
|
Tighthening torque MA [Nm] |
22 |
||
|
Basic load rating |
Basic dynamic load rating Crw [N] |
9800 |
|
|
Basic static load rating Corw [N] |
16000 |
||
|
Fatigue load limit Curw [N] |
2150 |
||
|
Rotating speed nDG [min-1] |
2050 |
||
As a professional cross roller bearing factory in china, THB-bearings has its own cross roller bearing factory which ensures the quality of our products.
