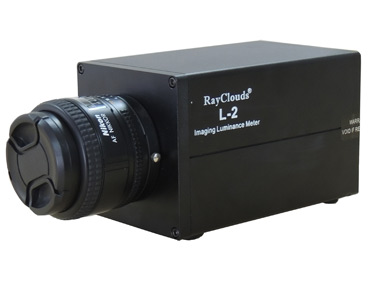

L-Series Imaging Photometer
Prix : 200 000,00 €
RayClouds L-Series Imaging Luminancemeter is ideal for high precision, high speed luminance measurement. L-Series of Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector, provides excellent luminance test solutions. Widely used in luminance measurement of FPD, automotive panel luminance analysis, etc.
L-Series Imaging Photometer Characteristic
L-Series Imaging Luminancemeter is equipped with 2 million, 16 million and 20million pixel resolution CMOS detector , provides excellent luminance test solutions.
L-2 measurement speed up to 100FPS at full resolution, making it ideal for high precision, high speed measurement applications.
L-16 features high frame rate and 128M DDR buffer memory, even in low configuration operating environments, it can be measured quickly.
L-20 with an ultra-high resolution of 2.4um, back-illuminated sensor and it can measure noise as low as one electron.
Support for reading and merging arbitrary partial images (ROI).
Multiple exposure and ND filters to achieve a wide range of measurement and up to 1000000: 1 contrast.
L-Series is equipped with a Y filter.
L-Series Imaging Photometer Application
Uniformity of Flat Panel Displays
Backlit Keyboards
Mobile & Backlight Uniformity Analysis
Avionics and Automotive Panels & Ambient light Analysis
Luminance Analysis
LED, Lens Beam Analysis
LED Lighting Products
Glare analysis of roads, indoor, tunnels, etc.
L-Series Imaging Photometer Specification
|
Model |
L-2 |
L-16 |
L-20 |
|
|
Detector |
1 / 1.2 " |
4/3 " |
1" |
|
|
Total Pixel |
2.28million |
16.21million |
20.44million |
|
|
EffectivePixels |
1920 * 1200 |
4634 * 3500 |
5540 * 3690 |
|
|
Pixel Size |
5.68μm * 5.68μm |
3.8μm * 3.8μm |
2.4mm * 2.4mm |
|
|
Dynamic Range |
>1000000: 1(Multiple exposure/ND filter) |
|||
|
Cooled System |
Two stage TEC.（Typical -45 below Ambient） |
|||
|
TO |
16bits |
|||
|
Exposure Time |
16μsec~60sec |
|||
|
Measurement Function |
Luminance |
|||
|
Luminance |
Measurement range |
0.0001 to100,000cd/m2 |
||
|
Accuracy*¹ |
± 3% |
|||
|
Repeatability(σ)*¹ |
± 0.5% |
|||
|
Optional lens type |
24mm, 28mm, 35mm, 50mm, 100mm F interface lens |
|||
|
Dimension |
88*88*150mm (L*W*H) |
|||
|
Interface |
LAN |
|||
|
Operating temperature |
5 to50ºC |
|||
|
Input voltage |
AC adapter |
|||
*1. Measurement of luminance and chromaticity in the RayClouds conditions (using 1000cd/m2 standard light source, LED backlight, 6500K LCD display).
*Specifications and appearance are subject to change without prior notice.
L-Series Imaging Photometer Ordering Details
|
Name |
Category |
Number |
|
Lens |
24mm 28mm 35mm 50mm 100mm |
L-LEN-24 L-LEN-28 L-LEN-35 L-LEN-50 LEN-L-100 |
|
LAN-Cable |
3m 5m 10m |
L-LAN-03 L-LAN-05 L-LAN-10 |
|
AC Adapter |
5V-3A |
L-PW-0503 |
|
PROICM Software |
V1.0 |
PROICM-V1.0 |
|
Software Manual |
PROICM |
L-SM-V1 |
|
Key |
USB |
L-KEY-19 |
|
Calibration Certificate |
Standard Light Source A LED Light Source Standard LCD at 6500K |
L-CAL-A L-CAL-LED L-CAL-LCD |
|
ND Filters（Optional） |
10 times 100 times |
L-ND-10 L-ND-100 |
|
Tripod（Optional） |
THREE |
L-TR-258 |
|
Instrument suitcase（Optional） |
L*W*H (390*285*120mm） |
L-PK-065 |
*Note: Please order the appropriate product specifications according to your needs.
