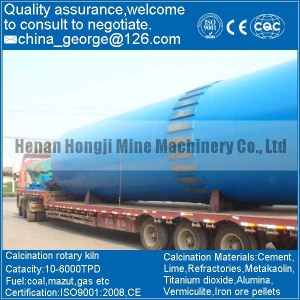

Large capacity hot sale Calcined Dolomite rotary kiln sold to Balkan Oblast
Specifications
Place of Origin: Henan, China (Mainland)
Model Number: 3.2*50
Condition: New
capacity(t/d): 1000
gradient(%): 3.5
total weight(t): 280.6
quality: superior
Packaging & Delivery
Packaging Details: export standard packaging
Delivery Detail: Within 15 days after receiving the downpayments
Specifications
Mini Rotary Kiln for Calcined Dolomite
Wear-resisting
Low energy consumption
Easy maintenance
ISO9001: 2008
Mini Rotary Kiln for Calcined Dolomite
Rotary kiln introduction:
rotary kiln is a rotary cylinder equipment. Rotary kiln for calcined dolomite processes solid material with mechanical, physical or chemical method.According to the materials, mini Rotary kiln for calcined dolomite is divided into cement kiln, metallurgy chemical kiln and lime kiln. Cement kiln is mainly used for calcining cement clinker ,which includes dry cement kiln and wet cement kiln.
Rotary kiln working principle:
The cylinder of rotary kiln made by steel plate. Cylinder body inlay puzzle refractory lined and a predetermined inclination to the horizontal. Three belting leather put the cylinder on each strut attachment. In the feed end near the belting leather across on the inner cylinder with a tangential ring gear fixed to the spring plate, under which a pinion meshing with. During normal operation, the main drive motor transmits power through the main reducer box, drive rotary kiln. Material from the kiln tail (end of the high) into the kiln calcination.Due to the cylinder tilted and the slow slew effect, materials tumbling both along the circumferential direction and the axial direction (from high to low-end) to move and continue to complete its process, and finally, the generated through the kiln hood into cooler cooling. Fuel is sprayed into kiln from the kiln head, after the produced by combustion exhaust gas and material exchange, derived from the kiln tail. This design does not contain fuel burner.
Rotary kiln parameter:
Specification: Φ3.5×54-Φ6×95
Capacity(t/h): 1500-10000
Gradient(%): 4
Round form of block: hydraulic
Support Number(pc): 3
Total ratio of speed(r/min): 0.39-MAX5
Assistance of drive(r/h): 7.66-9.3
Motor
Rating power(kw): 220-950C*2
Speed range(r/min): -1000-1000
Reducer
Rating voltage(v): 440-660
Total ratio of speed: 28-26.616
Tachogenerator
Rating power(kw): 22
Speed range(r/min): 0-2000
Motor
Rating power(kw): 18.5-132
Speed range(r/min): 970-1490
Rating voltage(v): 380
Reducer
Total ratio of speed: 28-45
Total weight(Not including firebrick)(t): 341-1580
For More Details Please do not hesitate to contact us via the following method
Email: china_george@126.com
Quick Lime, Cement Clinker Rotary Kiln
website: www.hjxkjx.com
