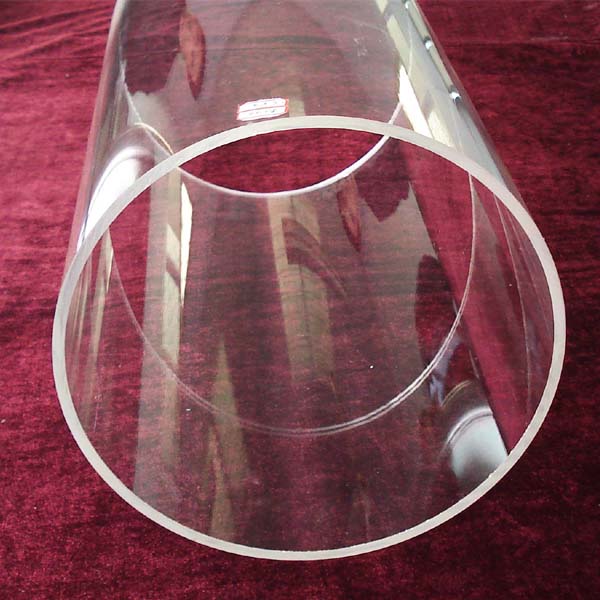

Large diameter quartz glass tube
Quantité : MOQ 1PCS Prix : USD10
Good quality and reasonable price of quartz tubes made in China.
1. quartz tube: OD3mm-420mm
2. Wall thickness : 1mm-10mm
3. Length : max1240mm (or according to your special requirement)
4. purity : 99.99% min
5. Shape : Both ends open/ One end close
5. Resistance 1100 degree, 1000 long time work
6. Low OH
7. Nice Appearances
8. Strong Corrosion-resistant
9. Good thermal stability
10. Good transparency for light>90%
11. Good electrical insulation
12. Special dimension and tolerances are available upone requests
13.Useful : electric light source, semiconductor,optical, photovoltaic,chemical industries
skquartz (at) outlook.com
· GOOD QUARTZ MATERIAL
· STRICT CONTROL OF THE PRODUCTION PROCESS
· GOOD QUALITY
· COMPETITIVE PRICES
· ON-TIME DELIVERIES
· GOOD AFTER-SALE SERVICE
Dimensional Tolerance
|
Range of OD |
OD |
WT |
Siding |
Out of Round |
Bow1220mm |
|
≤6mm |
±2.0% |
±10% |
12% |
2.0% |
2.5mm |
|
6.00-15.00mm |
±1.25% |
±8% |
10% |
1.5% |
2.5mm |
|
15.00-20.00mm |
±1.25% |
±10% |
15% |
1.5% |
2.5mm |
|
20.00-25.00mm |
±1.25% |
±10% |
15% |
1.5% |
3.0mm |
|
25.00-30.00mm |
±1.35% |
±12% |
15% |
1.5% |
3.0mm |
|
30.00-80.00mm |
±1.5% |
±14% |
15% |
2.0% |
3.0mm |
|
80.00-100.00mm |
±1.0% |
±0.5mm |
15% |
2.0% |
3.0mm |
|
100.00-120.00 |
±1.5% |
±0.8mm |
15% |
2.0% |
3.0mm |
|
120.00-160.00 |
±1.8% |
±1.0mm |
20% |
2.5% |
3.0mm |
|
160.00-180.00 |
±3.0% |
±1.0mm |
25% |
2.5% |
3.0mm |
|
180.00-200.00 |
±4.0% |
±1.5mm |
25% |
2.5% |
3.0mm |
|
200.00-240.00 |
±4.0% |
±1.5mm |
25% |
2.5% |
3.0mm |
|
240.00-280.00 |
±6.0% |
±2.0mm |
25% |
2.5% |
3.0mm |
|
280.00 above |
±8.0% |
±3.0mm |
25% |
2.5% |
3.0mm |
Chemical composition (ppm)
|
AL |
Fe |
K |
Na |
Li |
Ca |
Mg |
Cu |
Mn |
Cr |
B |
Ti |
|
5-12 |
0.19-1.5 |
0.71-1.6 |
0.12-1.76 |
0.38-0.76 |
0.17-1.23 |
0.05-0.5 |
0.05 |
0.05 |
<0.05</p> |
<0.1</p> |
<1.0</p> |
Spectral transmission at 1.0mm thickness
|
mm |
<220</p> |
255 |
280 |
315 |
350 |
38 |
590 |
780 |
|
% |
89 |
91 |
93 |
93 |
93 |
93 |
93.2 |
93.4 |
Physical Properties
|
(g/cc)Density20 °C kg.m-3 |
2.2 |
|
Degree of Hardness Moh's Scale |
5.5-5.6 |
|
Softening point(degree) |
1683 |
|
Annealing point |
1215 |
|
Defoamation Point |
1120 |
Personne à contacter : Kathy Xu, +86 518 87800686
