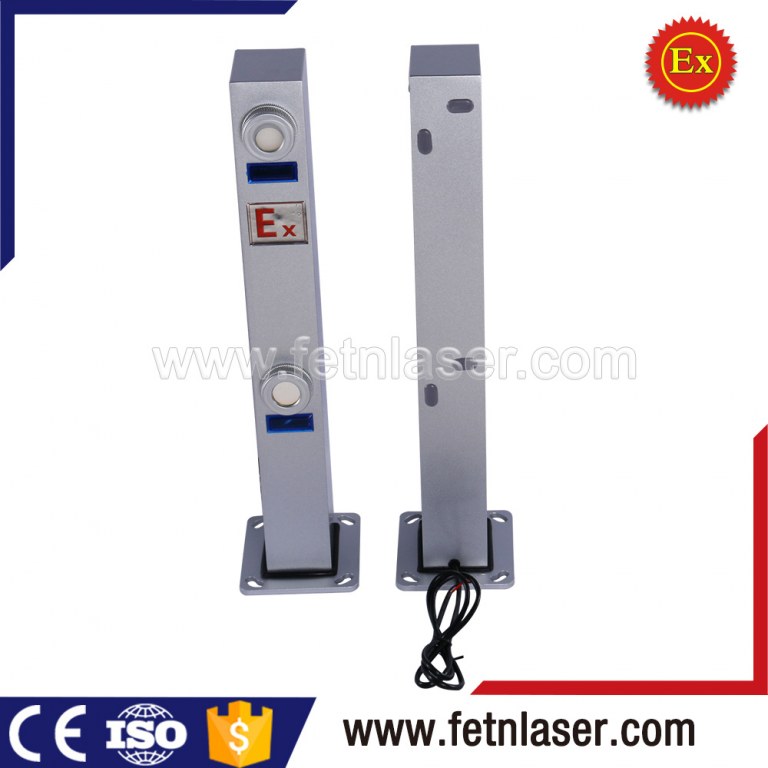

Laser beam detecor farm perimeter alarm
|
Item |
Technical indexes |
|
Model |
XD-B50/100/200/300/500ib |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
Double-layer alert, layer spacing: 24cm |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC12V±10% |
|
Working current: |
180mA when transmitting; 75mA when receiving (alarm) |
|
Alarm output mode |
Solid relay normally closed contact; contact capacity: DC24V/1A |
|
Angles at the transmitting and receiving ends |
Divergence angle: horizontal <6′ vertical <30′ Receiving angle: <±8°</p> |
|
Optical axis adjustment angle |
Horizontal ±15° Vertical ±15° (range adjustable.) |
|
Product dimension |
60mm (L) × 80mm (W) × 490mm (H) |
|
Chassis dimension |
110mm (L) × 130mm (W) × 6mm (H) |
|
Material |
Aluminum alloy |
|
Dimension of installation hole |
4 ∮10 mm holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
|
Explosive proof grade |
ExibmbIIBT4 Gb |
