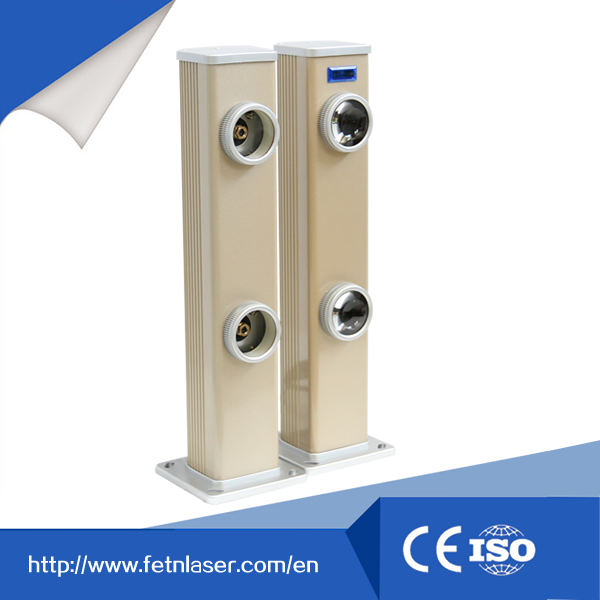

Laser motion detectors burglar alarm

Item

Technical indexes

Model

XL-B 50/100/200/300/500

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

double-layer alert,layer spacing: 23cm

Alarm mode

Beam blocking alarm

Working voltage

DC10-30V or AC220V

Working current:

Transmitting: 85mA ,receiving: 85mA,50mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle: <3′ Receiving angle: ＞10°</p>

Optical axis adjustment angle

Horizontal 30° Vertical ±30° (range adjustable.)

Product dimension

140mm (L) * 140mm (W) *511mm (H)

Chassis dimension

140mm (L) * 140mm (W) * 10mm (H)

Material

Shell: Aluminum alloy ;Top cover, Base: ABS PC

Product weight

3.02KG (transmitting end: 1.68KG, receiving end: 1.34KG）

Dimension of installation hole

Four 20*10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h
