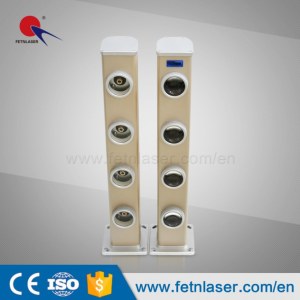

Laser perimeter alarm outdoor security system

Item

Technical indexes

Model

XL-B 50/100/200/300/500 D

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

Four-layer alert,layer spacing: 14.5cm

Alarm mode

Beam blocking alarm

Working voltage

DC10-30Vor AC220V

Working current:

Transmitting: 100mA ,receiving: 130mA,90mA when receiving alarm

Alarm output mode

A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A

Anti-dismantling output pattern

A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A

Angles at the transmitting and receiving ends

Divergence angle: <3′ Receiving angle: >10°</p>

Optical axis adjustment angle

Horizontal 30° Vertical ±30° (range adjustable.)

Product dimension

140mm(L)*140mm(W)*656mm(H)

Chassis dimension

140mm(L)*140mm(W)*10mm(H)

Material

Shell: Aluminum alloy ;Top cover, Base: ABS PC

Product weight

4.3KG (transmitting end: 2.4KG, receiving end: 1.9KG)

Dimension of installation hole

Four 20*10 holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h

Localisation : tengzhou,shandong,China, 277500 jinghe,
Personne à contacter : Amber Amber, 8618264205020
