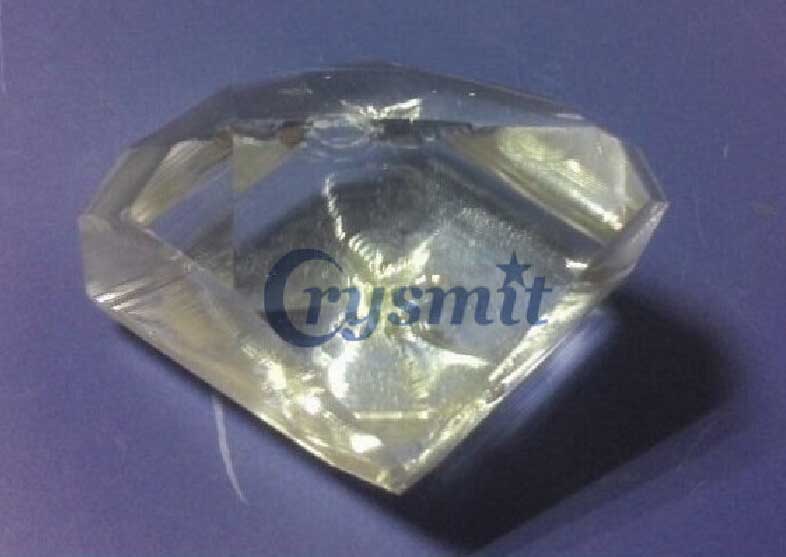

LBO
Quantité : 999
Lithium Triborate (LiB3O5 or LBO) is an attractive nonlinear optical (NLO) crystal which widely used for harmonic generation of high-intensity laser radiation.
| Crysmit offers |
 |
|
• Maximum processing size 30x30x30 mm3
|
|
|
• Maximum processing Length 60mm
|
|
|
• A large quantity of crystal in stock, Competitive Price
|
|
|
• Non-critical phase Matching (Theta=90°，Phi=0°)
|
|
|
• Fast delivery(10 days for polish only, 15 days for AR-coated)
|
|
|
Email now: sales@crysmit.com |
Main Features:
• Broad transparency range from 160nm in UV to 2600nm in IR;
• Relatively large effective SHG coefficient (about three times that of KDP);
• High effective non-linear coefficient ,wide acceptance angle and small walk-off;
• High damage threshold (>10GW/cm2 for 1064nm, 20ns, 50Hz);
• Type I and type II non-critical phase matching (NCPM) in a wide wavelength range;
• High optical homogeneity (dn~10-6/cm) and being free of inclusion;
• Spectral NCPM near 1300nm;
• Absorption: <30ppm/cm @1064nm <50ppm/cm for high power laser application.</div>
Typical Applications :
• SHG and THG for middle and high power Nd: lasers at 1064nm for medical, industrial and military applications;
• SHG for Ti: Sapphire, Alexandrite and Cr: LiSAF lasers;
• The VUV output at 187.7 nm is obtained by sum-frequency generation;
• SHG and THG of high power Nd: lasers at 1342nm & 1319nm for red and blue laser;
• SHG for the Nd: Lasers at 914nm & 946nm for blue laser;
• NCPM SHG over a broad wavelength range from 900nm-1700nm was measured;
• Phase matching process: SHG-554 nm fundamental, THG-794 nm, SFM-down to 160 nm;
• Optical Parametric Amplifiers (OPA) and Oscillators (OPO) application.
Physical and Chemical Properties:
|
Crystal Structure
|
Orthorhombic, Space group Pna21, Point group mm2
|
|
Lattice Parameters
|
a=8.4473Å, b=7.3788Å, c=5.1395Å, Z=2
|
|
Melting Point
|
About 834 °C
|
|
Mohs Hardness
|
6
|
|
Density
|
2.47 g/cm3
|
|
Hygroscopic Susceptibility
|
Low
|
|
Thermal Conductivity
|
3.5 W/m/K
|
|
Thermal Expansion Coefficients
|
αx=10.8x10-5/K, αy= -8.8x10-5/K, αz=3.4x10-5/K
|
Optical and Nonlinear Optical Properties:
|
Transparency Range
|
160 - 2600 nm
|
|
Phase Matching Range
|
551-2600nm for Type I, 790-2150nm for Type II
|
|
Thermo-Optic Coefficients (℃-1, λ in μm)
|
dnx/dT = - 9.3 x 10-6
|
|
dny/dT = -13.6 x 10-6
|
|
|
dnz/dT = (-6.3+2.1λ) x 10-6
|
|
|
Sellmeier Equations (λ in μm)
|
n2x= 2.4542+0.01125/(λ2-0.01135)-0.01388λ2
|
|
n2y=2.5390+0.01277/(λ2-0.01189)-0.01848λ2
|
|
|
n2z=2.5865+0.01310/(λ2-0.01223)-0.01861λ2
|
|
|
Non-Vanished Nonlinear Susceptibilities
|
d31 = 1.05 ± 0.09 pm/V
|
|
d32 = -0.98 ± 0.09 pm/V
|
|
|
d33= 0.05 ± 0.006 pm/V
|
Specifications:
|
Apertures
|
up to 30 x 30mm2
|
|
Length
|
up to 50mm
|
|
Dimension Tolerance
|
(W ± 0.1mm) x (H ± 0.1mm) x (L + 0.2mm/-0.1mm)
|
|
Phase Matching Angle Tolerance
|
∆θ< ± 0.25°; ∆φ< ±0.25°
|
|
Flatness
|
λ/10 @ 633nm
|
|
Wavefront Distortion
|
λ/10 @ 633nm
|
|
Surface Quality
|
10/5 Scratch/Dig
|
|
Parallelism
|
10 arc seconds
|
|
Perpendicularity
|
3 arc minutes
|
|
Clear Aperture
|
≥95% central area
|
|
Edge Bevel
|
0.15mm x 45°±5°
|
|
AR Coatings
|
R < 0.2% @ 1064nm, R < 0.5% @ 532nm
|
|
Damage Threshold of AR Coating
|
1 GW/cm2for 1064nm, 10ns pulse, 10Hz
|
