LCD Monitor Screen SAD1560KH
Frameless Housing.
Screen definition: 1920*1080.
Support 1080P video solution.
Full view angle.
Build with HDMI input.
With CE FCC ROHS certification.
LCD Monitor Screen Features

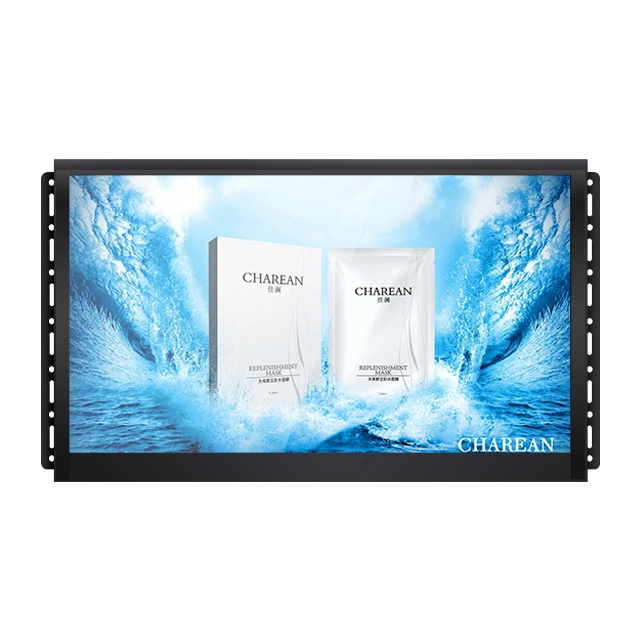

15.6'' Open Frame HD Video Screen
Open frame design and there are "ears" on each side of the monitor, which ensure it can be integrated into POP displays more easily.
15.6'' Open Frame HD Video Screen
15.6 inch open frame HD LCD advertising video screen.
15.6 inch IPS full view angle panel.
Support 1920*1080 video display.
Optional function:
1.Motion sensor (auto power on / off with or without detecting moving body)
2.Push button (to press the button for playing the files in designated)
15.6'' Open Frame HD Video Screen
15.6'' Open Frame HD Video Screen
Support content manage via USB & SD card.
Build with HDMI input.
Automatically playing videos repeatly from USB or SD card after power on.
Auto update contents by copying data from USB to SD card.
Auto power on/ off at a scheduled time.
15.6'' Open Frame HD Video Screen
Kerchan 15.6" Open Frame HD Video Screens are already being used in many areas like retail stores, restaurants, hospital, supermarket, meeting rooms, bank, airport, and any commercial environment.
LCD Monitor Screen Tech Spec
|
Model |
SAD1560KH |
Shell Color |
Standard: black |
|
Open Frame or Enclosed |
Open Frame |
LCD Panel |
15.6inch |
|
Resolution |
1920*1080 |
Display Ratio |
16: 9 |
|
Brightness |
220cd/m2 |
Contrast |
800: 1 |
|
Colour |
16.7M |
Visible Angle |
178/178 |
|
Response Time |
8ms |
Life Time(hrs) |
20000 H |
|
Visible Area |
344.16*193.59mm(H×V) |
Outline dimension |
395.65*228*28.5mm |
|
CPU |
TSUMV59XU |
GPU |
/ |
|
Memory |
/ |
ROM NAND flash |
/ |
|
Decoded Resolution |
Support 1080P |
RTC Real-time Clock |
Support |
|
Switch Time Setting |
Support |
System Update |
U flash disk update |
|
OS |
Mstar TV Nos |
External Interface |
DC IN/DC-SW/Earphone*4/HDMI in/SD/USB |
|
Touch Panel |
/ |
Camera |
/ |
|
Ethernet Support |
/ |
Speaker |
/ |
|
External Port |
Support SD/U flash disk |
Input |
AC 100-240V |
|
Output |
DC 12V/2A |
Power consumption(Watt) |
≤11W |
|
Standby(Watt) |
≤1W |
Material |
ABS material injection process |
|
Installation |
75*75mm VESA Wall Mount |
Image Format |
JPEG/BMP/GIF/PNG |
|
Audio Format |
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment) |
Video Format |
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC... |
|
Control Method |
Remote control |
Default Language |
English |
|
Menu Language |
Support Chinese, English |
Storage Temperature |
-20℃~60℃ |
|
Working Temperature |
-20℃~55℃ |
Storage Humidity |
10%-75% |
|
Working Humidity |
20%-80%RH |
Product Weight(N.W. ) |
1.5kg |
|
Plug Types |
US, EU, AU, UK Optional |
Package Size |
A single package: 336*88*453mmBulk packages: 509*442*280mm |
|
Packaging |
10pcs/Package Package Weight: 18kg (Reference Only) |
Accessories |
User Guide, Instruction Book, Warranty, Desiccant |
|
Optional |
1. Motion Sensor 2. Push Button |
Notes |
/ |
As a LCD display factory, We provide 15 lcd panel, 16 lcd display, 15.6 lcd screen, kiosk advertising display, etc. For 15.6 inch lcd display price or more information, please feel free to contact us!
