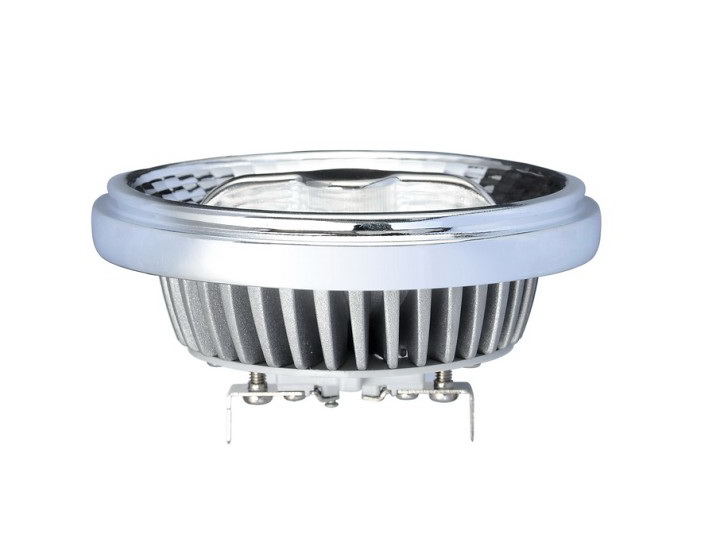

LED AR111 G53 12VAC/DC 10W COB Dimming Reflector Bulbs Spotlight Lamps

Quantité : 100000   Prix : 25,00 €

LELED Reflector AR111 AC/DC12V G53 COB 10W Lamps specification
Version: C03
1 General Data
1.1 Rated Voltage [V] AC/DC12
1.2 Wide Voltage Range[V] 10.5~14
1.3 Frequency [Hz] 50/60
1.4 Lamp Wattage [W] 10(+10%/-15%)
1.5 Lamp Current [mA] 920
1.6 Power Factor >0.9
1.7 LED chip brand Sharp
1.8 Dimming Range Non-dimmable
2 Light Data [Initial]
2.1 Beam angle 12°/24°/35°/45°
2.2 Light intensity[cd] 11000/4200/2000/1600
2.3 Equivalent Lumen Output[lm] 500
2.4 Color Temperature [K] 2700/3000/4000/5000
2.5 Comparsion Wattage 12V Halogen AR111 50W
2.6 Color Rendering Index 85
2.7 Operating temperature range[℃] -30 to +40
2.8 Projected Lumen Maintenance @ 30,000 hours [%] 90
3 Life Time [at 12V, lot size min. 20 units]
3.1 Life Time at 12V, 25℃ [h] 40,000
3.2 Switching cycle up to 50% failure (30s on, 30s off) [cycles] Unlimited
4 Geometrical Data
4.1 LED Number 1
4.2 Diameter (D) [mm] 110.7±0.3
4.3 Length (L) [mm] 65±2
4.4 Weight [g] 180±10
4.5 Base G53
4.6 RoHS Compliant
5 Technical Data
5.1 Safety Requirement According to IEC/EN60968
According to IEC/EN62031
5.2 Performance Requirement According to IEC/ENC60969
5.3 Photobiological Safety according to IEC/EN62471
5.4 EMC Requirement according to IEC/EN55015
according to IEC/EN61547
according to IEC/EN61000-3-2
according to IEC/EN61000-3-3
5.5 Approvals CE
5.6 Color of plastic component Grey/To be determined
6 Special Values
6.1 Flammability of plastic component 94-HB
6.2 Transparent lamp cover removal safety Torque 3Nm, 3kg pull force
6.3 Connection pins removal safety 6kg pull force,3kg side force
Localisation : 32# East Torch Road Xiamen China, 361000 Xiamen,
Personne à contacter : mark cheng, 86 592 5771725
