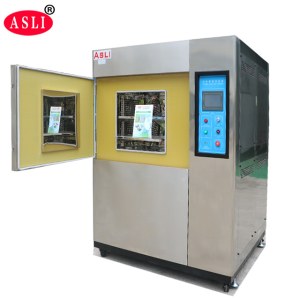

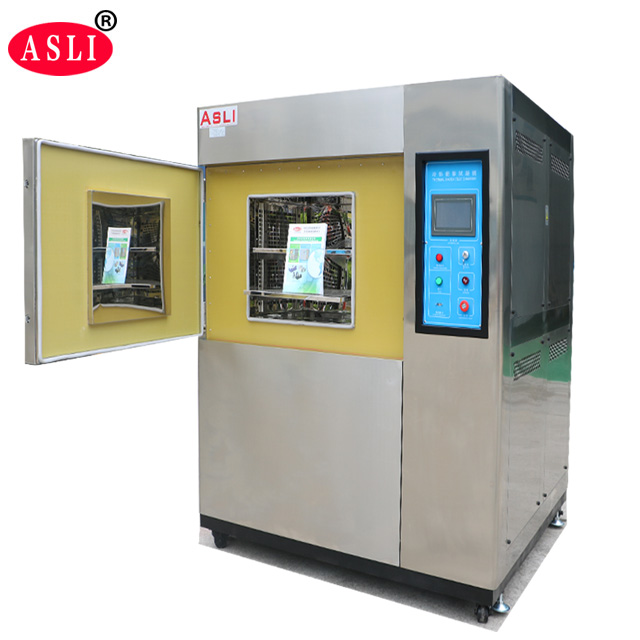

LED industrial Environmental Cold Thermal Shock Test Chamber
Quantité : 10 Sets Prix : USD 1000~800000
Cold Thermal Shock Chamber
Cold Temperature Shock Chamber /application:
Customized Vertical Climatic Thermal Shock Test Chamber is used to quickly find the hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid thermal shock condition, and you will not only reduce the premature failures but also increase the reliability of your products when you choose our thermal shock test chamber.
Thermal Shock Chamber /features:
1.3-zone design: hot zone, cold zone, and testing zone.
2.The test specimens under test are stationary in the testing zone.
3.Touch-control operation interface for ease of use.
4.Max.999H and max.9999 cycles for high or low temperature shock.
5.Automatic cycling shock or/and manual selective shock are available
6.Water cooled, binary cooling system for quick cooling effect .
Thermal Chambers/ technical parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
||||
Internal Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
||||
External Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
||||
Temperature Range of Testing zone |
Type A: -40 °C~+150°C(200°C is optional) |
Type B: -55°C ~+150°C (200°C is optional) |
Type C: -65°C ~+150°C (200°C is optional) |
||||||
High temperature Range of Testing zone: +60°C to +150°C,(200°C is optional); Low Temperature Range of Testing Zone: -10°C to -40°C/-55°C/-65°C |
|||||||||
Exposure Time of High/Low Temperature |
Exposure Time of High Temperature: +60°C to +150°C (200°C is Optional),needs about 30Mins |
||||||||
Exposure Time of Low Temperature: -10°C to A-40°C/ B -55°C/ C -65°C, needs about 30Mins |
|||||||||
Temperature of hot zone/Heating Time |
RT~200°C/About , needs about 45mins |
||||||||
Temperature of cold zone/Cooling Time |
RT~-75°C/ About ,needs about 100mins |
||||||||
Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec |
||||||||
Control Accuracy / Distribution Uniformity |
±0.5°C/±2°C |
||||||||
Material |
Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated. |
||||||||
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) ; Hermetic double-stage compressor (air-cooled type) |
||||||||
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch, failure warning system, electronic alarm |
||||||||
Accessories |
viewing window (Optional |
||||||||
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
||||||||
Power |
AC220V 50/60HZ, AC380V 50/60HZ |
||||||||
Weight (Approx. kg) |
450 |
600 |
750 |
950 |
1200 |
Personne à contacter : Rachel Lee, 0086 769 23164266
