Led lamp shade cover injection blow molding mahcine

Quantité : 1 piece   Prix : USD50000

Led lamp shade cover injection blow molding mahcine

Machine Characteristics

One step automatic injection blow molding machine for 5-1000ml PP, PE, PC, PS, ABS, BAREX material, one layer plastic bottle making in food, pharmaceutical, cosmetic packing industry.

1) Bottle neck moulded by means of thermo-runner system. High pressure injection making accuracy of bottle mouth, bottle neck and screw thread as well as sealing ability. No joint seam, no leftover bits making reduction of raw material.

2) High efficiency of continuous production with the horizontal three-position swivel device. Automatic manufacture, no secondary pollution conforming to the requirement of sanittation.

3) Using fame brand and high quality hydraulic, pneumatic and electrical elements ensures the system's good preformance and high reliability.

4) Double propertional hydraulic system making the adjustment of hydraulic system handy and keeping system stable in performance.

5) Advanced and accurate PID temperature control system.

Typical Products for Injection Blow Molding

JARS – These are made in PP, HDPE, PS, MIPS, SAN etc. Jars are made in a wide variety of materials. The process advantage is that no secondary trimming (scrap) is required when making the neck finish. Ovaloid neck (petroleum jelly) jars can be made by injection molding the neck finish.

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

ONE PIECE ROLL-ON DEODORANTS in PP and HDPE. Close tolerance of the injection moulded ball seating allows an even application of the deodorant product. Snap-on ball housings are also used on SAN and PET bottles used for clarity.

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

DROPPER BOTTLES – Usually produced in virgin LDPE. JASU IBM machines are installed in clean manufacturing environments worldwide. The bottles can be stripped from the core rods whilst still very hot and transported to the clean room in sterile air for packing.

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

TABLET and PILL BOTTLES(Phamarcy Bottle) – These are made from PP, HDPE, LDPE and PS. These bottles can be designed with complicated injected neck finishes for Child Resistance or pilfer-proofing. Also the neck finish is excellent for barrier seals against moisture with a plug seal closure, and also very flat for tamper foil application.

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

OVALS – CYLINDRICALS AND BOSTON ROUNDS – These bottles are made in HDPE, LDPE, PP. Up to 4 cavity molds from 10-15 second cycles. QUALITY PRODUCTS do not cause problems on decoration, filling or capping lines, and are less liable to bring customer complaint.

... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .

LED Lampshade PC/PET lamp cover for energy saving light

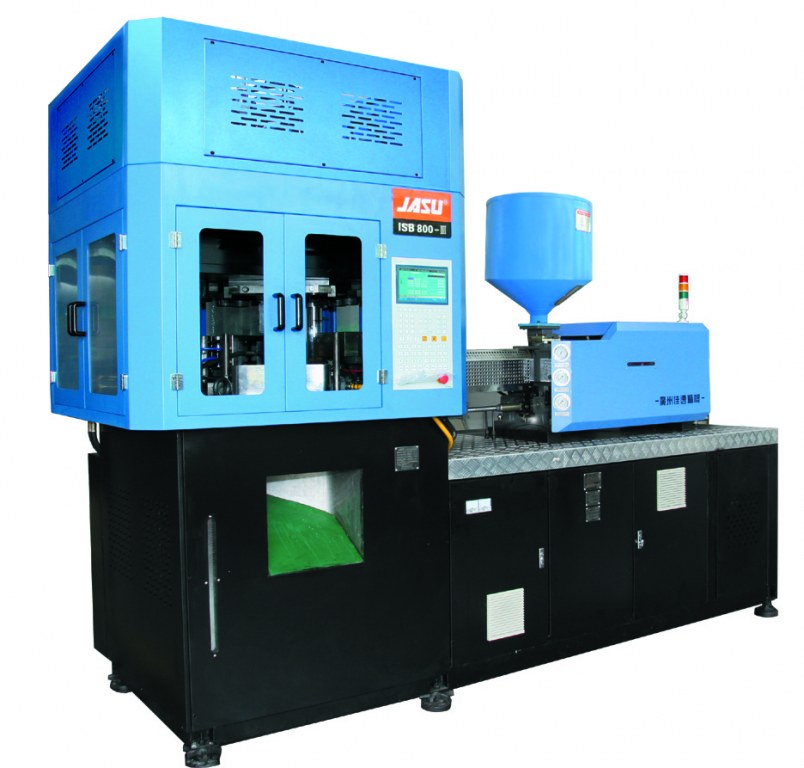

Blow Molding Machine-1.jpg


Compare Injection Blow Molding to Extrusion Blow Molding

Injection Blow Moulding Extrusion Blow Molding
No scrap 20-40% scrap during production
Uniform wall thickness Wall thickness variation
Bottle weight variation of 1% Bottle weight variation of 3%
Slower cycle time / more cavities Fast cycle time / less cavities
Thin walls difficult to control Thick & thin wall capabilities
Hollow Handleware not possible Hollow Handleware
Necks made with injection molded tolerances Necks made with blow molded tolerances
One technician per 4-6 machines One technician per 1-2 machines
Process is controlled and repeatable with no adjustments Variable process requiring constant adjustment
Almost no ancillary equipment Lots of ancillary equipment needed


Injection Blow Molding Machine Parameter
Item Unit Machine Type
IB500-2 ISB800-3 ISB800-4
Injection Part Screw Diameter mm 50 40 40
Screw L/D Ratio L/D 23.2 23 23
Screw Speed r/min 0-185 0-220 0-220
Injection Weight G 390 195 195
Injection Pressure Kg/cm2 1700 1504 1504
Max. Hydraulic Pressure Kg/cm 140 140 140
Plasticizing Capacity g/s 24 14 14
Injection Rate g/s 128 140 140
Clamping Part Blow Clamping Force Kn 150 80 80
Clamp Tonnage Kn 600 400 400
Wheel Diameter mm 800 800
Max. Height of Bottle mm 400 400
Open Vertical Mode Trip mm 430 430 430
Others Max. Pump Pressure Mpa 16 16 16
Motor Oil Kw 18.5 18.5 18.5
Electric Power Kw 16 13 13
Tank Volume L 400 400 400
Dimension of Machine m 4.1x1.45x3.1 3.8x1.45x3.0 3.8x1.45x3.0
Machine Weight Ton 5 5 5

Workshop & Manufacturer



Factory Honor


Localisation : YingXing Road M., Panyu Avenue , ShiQiao, PanYu District, Guangzhou , 511400 Guangzhou,
Personne à contacter : Wade Choi, (86 20) 34809599 ext 6227
