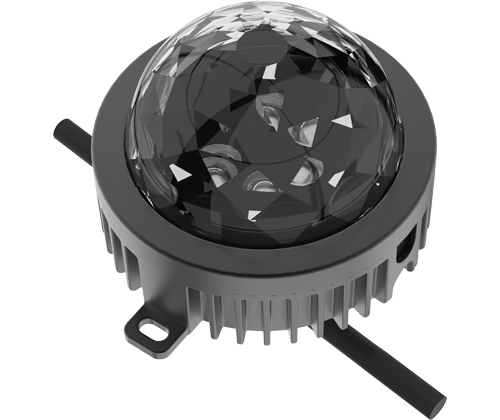

LED Pixel Light EXC-P85GM

Pixel light led EXC-P85GM series is the string LED outdoor pixel lights with extruded aluminum alloy housing, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P85GM pixel is the separate outdoor pixel lights, and each pixel can realize 8bit/16bit grades grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation, as well as reasonable LED pixel light price.

Specification Optical Parameters of LED Outdoor Pixel Lights 5W EXC-P85GM

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color: RGB, RGB+W, W, etc

Beam Angle: 120degree, Open beam, and other angles optional

Source Life: 50,000h

Electrical Parameters of LED Outdoor Pixel Lights 5W EXC-P85GM

Working Voltage: DC24V

Rated Power: Maximum: 3W/4W/5W

Control Parameters of LED Outdoor Pixel Lights 5W EXC-P85GM

Control Method: DMX512/On Off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the lights control system

Structural Parameters of LED Outdoor Pixel Lights 5W EXC-P85GM

Shell Material: Aluminum

Surface Color: Black&White, Other colors optional

Structure Size: 105mm x 105mm x 62.5mm (L x W x H, exclude Mounting Bracket)

Total Weight: 250g

Environmental Parameters of LED Outdoor Pixel Lights 5W EXC-P85GM

Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor
