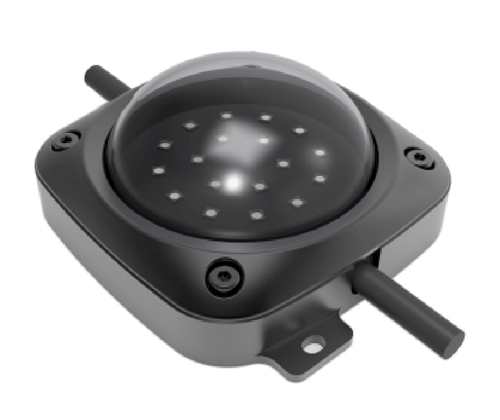

LED Pixel Light EXC-P90DM0

EXC-P90DM0 full-color series are a full-color LED series string LED pixel light with extruded aluminum alloy housing, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P90AM pixel is a separate lighting pixel, and each pixel can realize 8bit/16bit grades grayscale changing. LED pixel string lights can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel String Lights 5W EXC-P90DM0

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color: RGB, RGB+W, W, etc

Beam Angle: 120degree, Open beam, and other angles optional

Source Life: 50,000h

Electrical Parameters of LED Pixel String Lights 5W EXC-P90DM0

Working Voltage: DC24V

Rated Power: Maximum: W(3.5W/5W), RGB(3/4W), RGB+W(3W/5W)

Control Parameters of LED Pixel String Lights 5W EXC-P90DM0

Control Method: DMX512/On Off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the lights control system

Structural Parameters of LED Pixel String Lights 5W EXC-P90DM0

Shell Material: Aluminum

Surface Color: Black&White, Other colors optional

Structure Size: 107mm x 107mm x 42mm (L x W x H, exclude Mounting Bracket)

Total Weight: 450g

Environmental Parameters of LED Pixel String Lights 5W EXC-P90DM0

Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor
