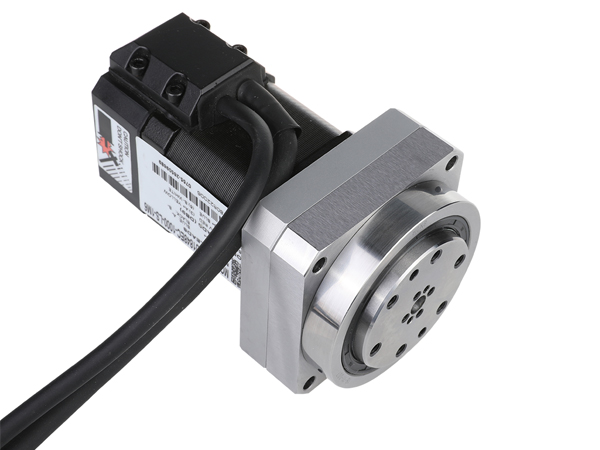

LFS Ultra Flat Harmonic Gearbox
Prix : 400USD
LFS series- this harmonic actuator is a combination product that is lightweight, ultra-flat. It uses cross-roller bearing.
LFS integrated series-Combined harmonic reducer with high performance and small motor, with highest input characteristics under the same gear conditions.
Applications of LFS Harmonic Gearbox/Actuator:
Industrial robots;
Service robots;
Medical devices;
Automation and Special Equipment.
Features of LFS Harmonic Actuator
Ultra flat
Light weight
Small size
Specification of LFS Ultra-flat Harmonic Gearbox
Rated Parameter Table of LFS Series Flat Gearbox
|
Model |
Reduction ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed(grease) |
Permissible average input rotational speed(grease) |
Backlash |
Design life |
||||
|
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
Nm |
Kgfm |
r/min |
r/min |
Arc sec |
Hour |
||
|
11 |
50 |
3.5 |
0.4 |
8.3 |
0.9 |
5.5 |
0.6 |
17 |
1.7 |
8500 |
3000 |
≤20 |
10000 |
|
80 |
5 |
0.5 |
11 |
1.1 |
8.9 |
0.9 |
25 |
2.5 |
|||||
|
100 |
5 |
0.5 |
11 |
1.1 |
8.9 |
0.9 |
25 |
2.5 |
|||||
|
14 |
50 |
5.4 |
0.6 |
18 |
1.8 |
6.9 |
0.7 |
35 |
3.6 |
8500 |
3000 |
≤20 |
10000 |
|
80 |
7.8 |
0.8 |
28 |
2.9 |
11 |
1.1 |
54 |
5.5 |
|||||
|
100 |
7.8 |
0.8 |
28 |
2.9 |
11 |
1.1 |
54 |
5.5 |
|||||
Drawings
Outer Dimension Drawing of LFS Harmonic Actuator
Laifual Drive is a professional custom gear manufacturer. We provide LSD Shorten Thin Harmonic Gearbox, LFS Ultra Flat Harmonic Gearbox, harmonic drive gear and so on. Want to know more? Please contact us.
Personne à contacter : Zhang Sky , 0575 89303973
