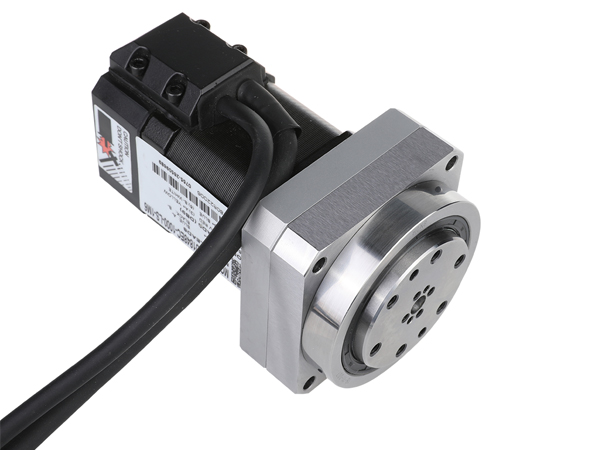

LFS Ultra Flat Harmonic Gearbox
LFS series- this harmonic actuator is a combination product that is lightweight, ultra-flat. It uses cross-roller bearing.
LFS integrated series-Combined strain wave reducer with high performance and small motor, with highest input characteristics under the same gear conditions.
Applications of LFS Harmonic Gearbox/Actuator:
Industrial robots;
Service robots;
Medical devices;
Automation and Special Equipment.
Specification of LFS Ultra-flat Harmonic Gearbox
Rated Parameter Table of LFS Series Flat Gearbox
|
Model |
Reduction ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed（Grease） |
Permissible average input rotational speed |
Backlash |
Design life |
||||
|
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
r/min |
r/min |
Arc Sec |
Hour |
||
|
11 |
80 |
4.5 |
0.5 |
9.9 |
1 |
8 |
0.8 |
22.5 |
2.3 |
8500 |
3500 |
≤20 |
7000 |
|
100 |
5 |
0.5 |
11 |
1.1 |
8.9 |
0.9 |
25 |
2.5 |
7000 |
||||
|
14 |
50 |
5.4 |
0.55 |
18 |
1.8 |
6.9 |
0.7 |
35 |
3.6 |
8500 |
3500 |
≤20 |
10000 |
|
80 |
7.8 |
0.8 |
23 |
2.4 |
11 |
1.1 |
47 |
4.8 |
10000 |
||||
|
100 |
7.8 |
0.8 |
28 |
2.9 |
11 |
1.1 |
54 |
5.5 |
10000 |
||||
Features of LFS Harmonic Actuator
Ultra flat
Light weight
Small size
Drawing Download of LFS Harmonic Actuator
As one of the gearbox producers, we provide planetary speed reducer, harmonic gearbox design, right angle servo gearbox, nema 17 harmonic drive, harmonic drive actuator and etc. Want to know more? Contact us.
