LGT-106 By Pass Laser Gas Analyzer
Overview Of LGT-106 By Pass Laser Gas Analyzer

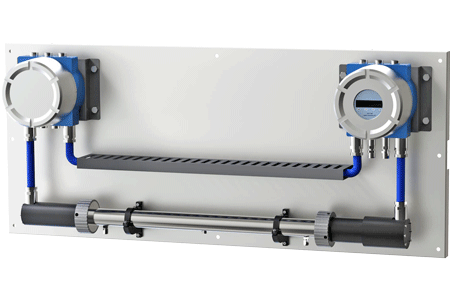

LGT-106 is a flameproof bypass type tunable laser gas analyzer for industrial on-line analysis and environmental on-line monitoring, especially suitable for harsh working conditions such as high temperature, high humidity, high dust, high pressure, and for small where the in-situ analyzer is not applicable. The transmitter and receiver are installed on a back board. The analyzer contains auto-purge function which greatly reduces maintenance cost.
Features Of LGT-106 By Pass Laser Gas Analyzer
• This type of gas analyzer equipment is suitable for harsh working conditions such as high temperature, high humidity, high dust, high pressure, and for small.
• Integrated structure design, high reliability, and stability.
• "Single line" spectrum technology, free from the interference of background gas.
• Innovative Hall button design, high sensitivity, easy operation.
• Automatic calibration, automatic back blow.
• LGT-106 by pass laser gas analyzer manufactured by ZETIAN, one of the best CEMS manufacturers, adopts imported TO encapsulate semiconductor lasers, optical noises are restrained with an anti-reflective coating end cap.
Application Of LGT-106 By Pass Laser Gas Analyzer
Apply to trace H2S and H2O detection and analysis in the gas industry; trace H2S analysis in petrochemicals, coal chemicals, and environmental protection industries; trace H2O detection and analysis in chlorine gas; mill inlet gas detection and analysis.
Technical Parameter Of LGT-106 By Pass Laser Gas Analyzer
|
Principle |
TDLAS |
|
Linearity Error |
≤±1%F.S. |
|
Span Drift |
≤±1% F.S./half year |
|
Zero Drift |
≤±1% F.S./half year |
|
Calibration cycle |
2 times/year |
|
Response Time |
≤30s(according to work condition) |
|
Explosion proof |
ExdIICT6 Gb |
|
Analog Output |
2× 4-20mA output |
|
Analog Input |
2× 4-20mA input |
|
Digital Communications |
RS485/RS232/GPRS |
|
Working Temp |
-20℃~+60℃ |
|
Purge Gas |
0.3MPa ~ 0.8MPa N2, clean air |
|
Power supply |
24VDC, <20W</span> |
HANGZHOU ZETIAN TECHNOLOGY is one of professional air pollution monitoring instruments manufacturers, we provide Air Quality Monitor, Water Quality Analyzer, water quality testing and so on. Want to know more? Please contact us.
