LHT/LHN/LHG Large Diameter Hollow Hole, Flat Shape Harmonic Gearbox
Prix : 400USD

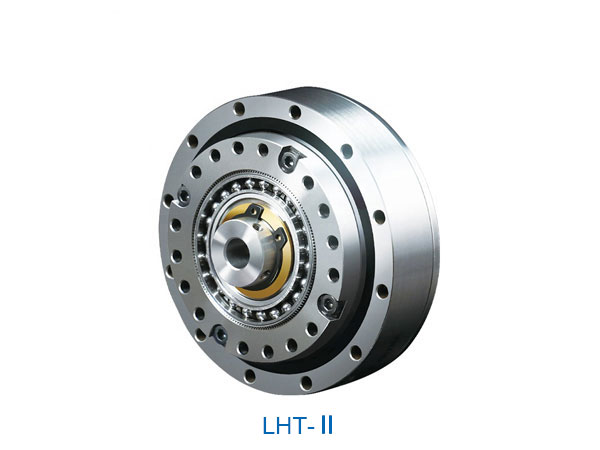

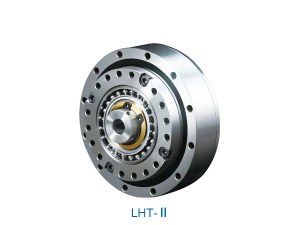

The LHT Series of hollow output shaft gearboxes use hat type flex spline. We can divide the LHT drive actuators into 5 versions, LHT-I, LHT-II, LHT-III, LHT-IV and LHT-V.
Differences Among Different LHT Hollow Shaft Gearbox:
LHT-I: use uni-body type wave generator
LHT-II: cross slider type wave generator
LHT-III: large bore with a hollow hole
LHT-IV: shaft input type
LHT-V: Simple type
Applications of LHT Harmonic Drive Actuators:
Industrial robots;
Service robots;
Medical Devices;
Automation and special equipment;
Printed circuit manufacturing equipment.
Features of LHT Large Diameter Hollow Hole, Flat Shape Harmonic Shaft Gearbox
Large bore with hollow hole, flat shape
Non-backlash
High positioning and rotational accuracies
Coaxial input and output
Compact and simple design
High torque capacity
High stiffness
Light weight
Specification of LHT Large Diameter Hollow Hole, Flat Shape Harmonic Gearbox
Rated Parameter Table of LHT/LHN Series
Model |
Reduction Ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed |
Permissible average input rotational speed |
Backlash |
Design life |
||||
Grease |
Grease |
||||||||||||
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
r/min |
r/min |
Arc Sec |
Hour |
||
14 |
50 |
6.2 |
0.6 |
20.7 |
2.1 |
7.9 |
0.7 |
40.3 |
4.1 |
7000 |
3000 |
≦30 |
10000 |
80 |
9 |
0.9 |
27 |
2.7 |
12.7 |
1.3 |
54.1 |
5.5 |
|||||
100 |
9 |
0.9 |
32 |
3.3 |
12.7 |
1.3 |
62.1 |
6.3 |
|||||
17 |
50 |
18.4 |
1.9 |
39 |
4 |
29.9 |
3 |
80.5 |
8.2 |
6500 |
3000 |
≦30 |
15000 |
80 |
25.3 |
2.6 |
49.5 |
5 |
31 |
3.2 |
100.1 |
10.2 |
|||||
100 |
27.6 |
2.8 |
62 |
6.3 |
45 |
4.6 |
124.2 |
12.7 |
|||||
20 |
50 |
28.8 |
2.9 |
64.4 |
6.6 |
39 |
4 |
112.7 |
11.5 |
5600 |
3000 |
≦30 |
15000 |
80 |
39.1 |
4 |
85 |
8.8 |
54 |
5.5 |
146.1 |
14.9 |
|||||
100 |
46 |
4.7 |
94.3 |
9.6 |
56 |
5.8 |
169.1 |
17.2 |
|||||
120 |
46 |
4.7 |
100 |
10.2 |
56 |
5.8 |
169.1 |
17.2 |
|||||
160 |
46 |
4.7 |
100 |
10.2 |
56 |
5.8 |
169.1 |
17.2 |
|||||
25 |
50 |
44.9 |
4.6 |
113 |
11.5 |
63 |
6.5 |
213.9 |
21.8 |
4800 |
3000 |
≦30 |
15000 |
80 |
72.5 |
7.4 |
158 |
16.1 |
100 |
10.2 |
293.3 |
29.9 |
|||||
100 |
77.1 |
7.9 |
181 |
18.4 |
124 |
12.7 |
326.6 |
33.3 |
|||||
120 |
77.1 |
7.9 |
192 |
19.6 |
124 |
12.7 |
349.6 |
35.6 |
|||||
32 |
50 |
87.4 |
8.9 |
248 |
25.3 |
124 |
12.7 |
439 |
44.8 |
4000 |
3000 |
≦30 |
15000 |
80 |
135.7 |
13.8 |
350 |
35.6 |
192 |
19.6 |
653 |
66.6 |
|||||
100 |
157.6 |
16.1 |
383 |
39.1 |
248 |
25.3 |
744 |
75.9 |
|||||
40 |
100 |
308 |
37.2 |
660 |
67 |
432 |
44 |
1232 |
126.7 |
4000 |
3000 |
≦30 |
15000 |
Rated Parameter Table of LHG Series
Model |
Reduction ratio |
Rated torque at 2000r/min input |
Permissible peak torque at start and stop |
Permissible maximum value for average load torque |
Permissible maximum momentary torque |
Permissible maximum input rotational speed |
Permissible average input rotational speed |
Backlash |
Design life |
||||
Grease |
Grease |
||||||||||||
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
Nm |
kgfm |
r/min |
r/min |
Arc Sec |
Hour |
||
14 |
50 |
7 |
0.7 |
23 |
2.3 |
9 |
0.9 |
46 |
4.7 |
14000 |
8500 |
≦20 |
15000 |
80 |
10 |
1 |
30 |
3.1 |
14 |
1.4 |
61 |
6.2 |
|||||
100 |
10 |
1 |
36 |
3.7 |
14 |
1.4 |
70 |
7.2 |
|||||
17 |
50 |
21 |
2.1 |
44 |
4.5 |
34 |
3.4 |
