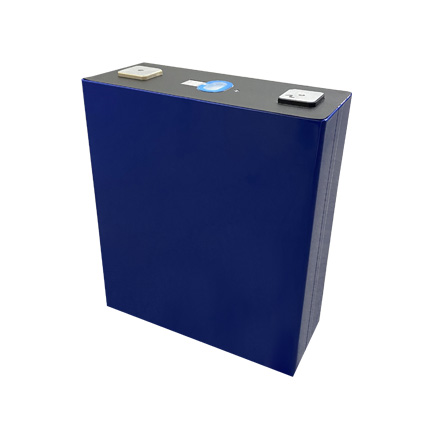

LiFePO4 280Ah Battery

Belong to GB 71173 series of dimension format

Approximately same dimension with long cycle lifepo4 280ah cells / 280ah lifepo4 battery and LFP302Ah

4000times outstanding cycle life with maximum reliability

Support cells with screw terminals and nut terminals

Continuously improved energy density though new materials and light weighting technology.

The main application for material handing equipment, trucks,buses etcetera.

Technical Datas of lifepo4 battery 280ah Battery

No. Item Specification Note

1 Rated Capacity 280Ah @1C

2 Nominal Voltage 3.2V

3 Actual Voltage Range 2.5-3.65V

4 Constant Discharge Current ≤280A Typical Value=140A

5 Peak Discharge Current ≤560A @60s

6 Constant Charge Current ≤280A Typical Value=140A

7 Peak Charge Current ≤560A @60s

8 Operating Temperature Charge: 0℃~55℃

Discharge: -30℃~55℃

9 Storage Temperature ﹣30℃~60℃

10 Cell Dimensions Thickness: 71.57±0.5mm

Length: 174.00±0.5mm

Height: 200.37±0.6mm

11 Cathode Material LFP

12 Weight 5.27±0.16 kg

13 Energy density 170Wh/kg

14 Cycle life ≥4000 times @0.5C/0.5C 100%DOD

15 Terminal Welding/Screw/Nut terminal

As a professional lithium batteries factory, we provide 3.2 v 100ah lifepo4 battery, lifepo4 280ah cell, lifepo4 battery 3.2 v 280ah, lifepo4 3.2 v 280ah, 3.2 v 280ah lifepo4, 280ah Lithium Battery,lithium ion battery wholesale, etc. For more information, please feel free to contact us!
