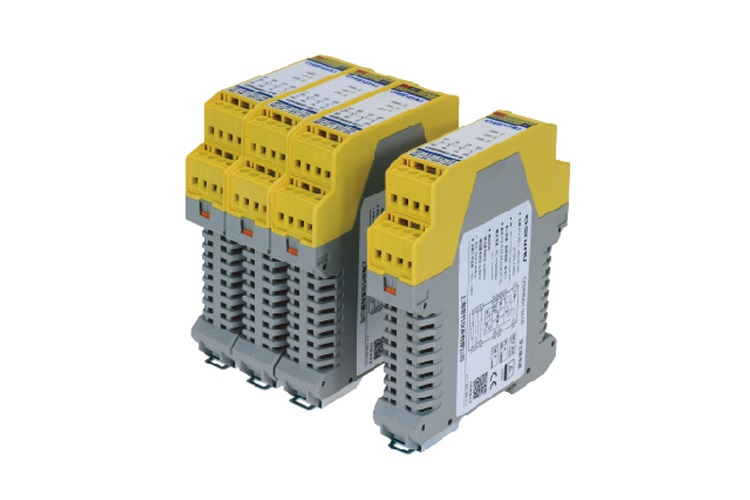

Light Curtain Safety Relay
Quantité : 1 million Prix : 200-2000 CNY/pc
Light Curtain Safety Relay
Light curtain Safety Relay supports PNP-type light beam devices. Safety relay modules provide a high level of fail-safe operation for critical processes and protection. These light curtains and multifunction controllers provide multiple functions such as release delay, muting, stepping, and protection for multiple curtains.
Safety rated relays can choose single or dual channel operation, manual or automatic reset, with function of short circuit monitoring between channels.
Features & Advantages of Light Curtain Safety Relay
Support PNP type light beam device
Support dual channel
Support manual or automatic reset
Parameter of Light Curtain Safety Relay
|
CZSR8001-3A1B-P |
CZSR8101-3A1B-N |
|
|
Supply voltage |
24V DC |
24V DC |
|
Voltage tolerance |
0.85~1.1 |
0.85~1.1 |
|
Current consumption |
≤90mA (24V DC) |
≤90mA (24V DC) |
|
Input current |
≤50mA (24V DC) |
≤50mA (24V DC) |
|
Cable resistance |
≤15Ω |
≤15Ω |
|
Input devices |
PNP type light beam devices |
NPN type light beam devices |
|
Number of contacts |
3NO+1NC |
3NO+1NC |
|
Contact material |
AgSnO2 + 0.2 µm Au |
AgSnO2+ 0.2 µm Au |
|
External contact fuse protection |
10A gL/gG NEOZED (NO) ; |
10A gL/gG NEOZED (NO); |
|
6A gL/gG NEOZED (NC) |
6A gL/gG NEOZED (NC) |
|
|
Mechanical endurance of contacts |
≥107 |
≥107 |
|
Utilization category |
In accordance with EN60947-5-1: |
In accordance with EN60947-5-1: |
|
AC-15, 5A/230V; DC-13, 5A/24V |
AC-15, 5A/230V; DC-13, 5A/24V |
|
|
Switch-on delay |
≤300ms |
≤300ms |
|
Delay-on de-energisation |
≤30ms |
≤30ms |
|
Recovery time |
≤100ms |
≤100ms |
|
Supply short interruption |
20ms |
20ms |
|
EMC |
EN60947, EN61000-6-2, EN61000-6-4 |
EN60947, EN61000-6-2, EN61000-6-4 |
|
Vibration |
Vibration frequency: 10Hz~55Hz; |
Vibration frequency: 10Hz~55Hz; |
|
Vibration amplitude: 0.35mm |
Vibration amplitude: 0.35mm |
|
|
Ambient temperature |
-20℃~+60℃ |
-20℃~+60℃ |
|
Storage temperature |
-40℃~+85℃ |
-40℃~+85℃ |
|
Relative humidity |
10%~90% |
10%~90% |
|
Elevation |
≤2000m |
≤2000m |
|
Overvoltage category |
Ⅲ |
Ⅲ |
|
Pollution degree |
2 |
2 |
|
Rated insulation voltage |
250V AC |
250V AC |
|
Rated impulse voltage |
6000V (1.2/50us) |
6000V (1.2/50us) |
|
Dielectric strength |
1500V AC, 1min |
1500V AC, 1min |
|
Clearance and creepage distance |
In accordance with EN 60947-1 |
In accordance with EN 60947-1 |
|
Safety integrity level |
SIL3 |
SIL3 |
|
Performance level |
PLe |
PLe |
|
Category |
Cat.4 |
Cat.4 |
CHENZHU manufactures the most reliable interface product for safety automation system. We are here to help your device run more safely. Here you can not only get world-class products, but also outstanding service for automation and safety system.
