LIGHT GAUGE STEEL FRAMING C PURLIN ROLL FORMING MACHINEE
Quantité : 30 Prix : 10000-100000
OSJ Light Gauge steel framing roll former is suited to construct walls, floors and roofs for 1 – 3 level residential, modular and transportable units, and light commercial construction.
Features of Light Gauge Steel Framing C Purlin Roll Forming Machine
Good price, Fast delivery time, After-sales service support
Stable performance: globally first offer with AC system
High precision: less than 0.02mm, forming/punching/cutting one process
Two options for holes: Rivet and screw holes,optional change with American technology
Advanced programming: production software with Windows 10, auto memory
Software
control English insturction，load csv file to software，produce automatically

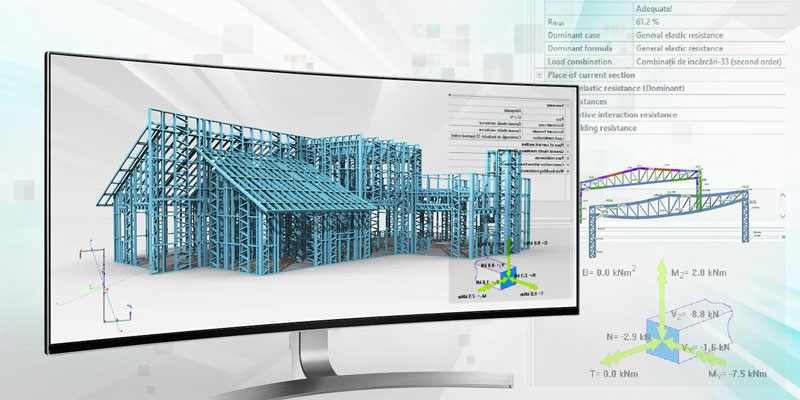

Create frame work 3D map and 3D decoration view
With analysis project function, the software can calculate bearing capacity
Calculate the bill of material, including the needed steel, plates, thermal insulation material，doors and windows, screws and other matching material
Permanent use without updating or upgrading
Technical parameter
Main forming machine
|
Name |
Details |
Remarks |
|
Dimension |
4800x1200x700mm |
|
|
Weight |
3 T |
|
|
Colour |
Customized |
|
|
Main motor |
7.5 KW Servo motor |
Taiwan Delta |
|
Transmission |
Gear transmission + chain drive |
|
|
Forming Mould |
Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62 |
+0.000-0.015mm |
|
Main axis
|
40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating. |
+0.000-0.011mm |
|
Speed |
40m/min(without punching and cutting) |
|
|
Production capacity |
6-8 tons/h (Overall speed to make the whole house) |
|
|
Tolerance |
punching and cutting: ± 0.5mm forming: ±0.75mm |
Avoid stretching magnification errors during forming |
BOSJ is a professional china roll forming machine manufacturer,we provides china cold roll forming machine, guardrail forming machine, steel frame roll forming machine, light steel frame machine and etc. Want to know more? Please contact us.
Personne à contacter : Wang Joyce , 0510 86062268
