Lightning Protection PDU
Techwin Inc. is one of the most professional surge protection device manufacturers in China. With matured experience in surge protector technology, Techwin surge protection device(SPD) China manufacturer, whose spd surge arresters obtained 28 technology patents and multiple certifications such as CE, ROHS, TUV, UL, CQC, ISO9001, ISO14001, ISO45001 and so on.

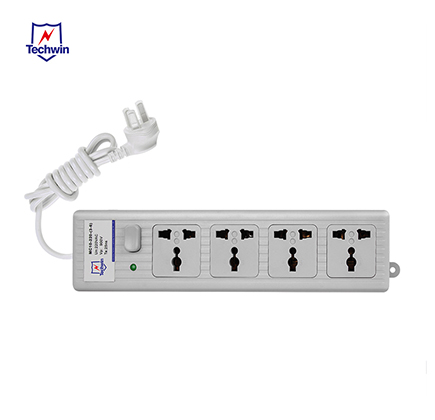

Power lightning protection strips are mainly used for the final protection of AC power, used for terminal equipment, such as background machines, video surveillance systems, Ethernet switches, and household appliances 220VAC power protection. This series of products has the characteristics of fast response time and low residual pressure and has a good lightning protection effect without affecting the normal operation of the equipment. Customized plug extension board with surge & spike protection can be provided: 8, 10, 12, or multi-outlet surge protector with long cord; 12-way power surge extension leads with individual switches; 8-way anti surge power strip; 20 amp grounded metal power surge protector strip with long cord; rack-mountable PDU with electrical power surge protector power strip suppressor, white surge protector power strip...
Specification Of Lightning PDU Electrical Power Strips Surge Protection
|
Models Parameter |
PDU |
PDU10-220 |
PDU16-220 |
|
MC |
MC10-220 |
MC16-220 |
|
|
Working voltage Un |
220V |
||
|
Max continuous operating voltage Uc |
275V |
||
|
Rated operational current Ie |
10A |
16A |
|
|
Nominal discharge current In |
5kA(8/20μs) |
||
|
Max discharge current Imax |
10kA(8/20μs) |
||
|
Protection level Up |
900V |
||
|
Response time Ta |
25ns |
||
|
Protection mode |
L-PE, N-PE |
||
|
Dimension |
PDU |
The length is standard 19 inches 498(L) ×56(W) ×45(H)mm |
|
|
MC |
The size depends on the number of sockets |
||
|
Remote Control |
Option |
||
|
IP grade |
IP20 |
||
Features Of Lightning PDU Power Strip Surge Protector
- Use flame-retardant PC material to protect equipment safety.
- The aluminum alloy shell is sturdy and durable, and the heat dissipation is fast, ensuring firmness during the installation of the cabinet.
- The power supply protection devices are with overload protection, when the power consumption exceeds the rated power, the overload protector will automatically cut off the power supply.
- Phosphor bronze is used as a conductive material inside, which has good conductivity, low-temperature rise, and is not easy to generate heat.
