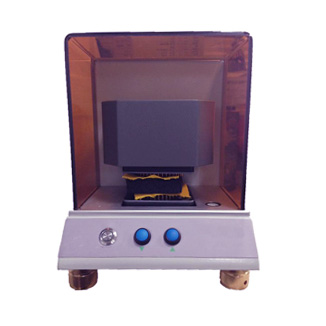

Liquid Moisture Management Tester

Standards

AATCC 195 GB/T 21655.2 SN 1689.1

Overview

Moisture management tester is the tool for the measurement, evaluation and classification of liquid moisture management properties of textile fabrics. By testing the changes in electrical resistance of textiles placed between two horizontal electrical sensors with concentric pins, the tester can calculate fabric liquid moisture content changes that quantify dynamic liquid moisture transport behaviors in multiple directions of the specimen. The software of tester can grade the liquid moisture management properties of a fabric by using the predetermined indices. The tester is used to determine the liquid moisture management properties of knitted, woven and nonwoven textiles, and also can be used to test the one-way transport capability of diapers.

Specification

Upper sensor Φ58.4mm (Φ0.54mm pin)

Lower sensor Φ58.4mm (Φ1.2mm pin)

Liquid adding rate 0.2g/20s

Loading pressure 4.65N

Testing time 120s (Standard time)

Parameter Absorption rate, one-way transport capability, maximum wetted radius, overall moisture management capability, spreading speed, wetting time

Power supply 220V 50Hz
