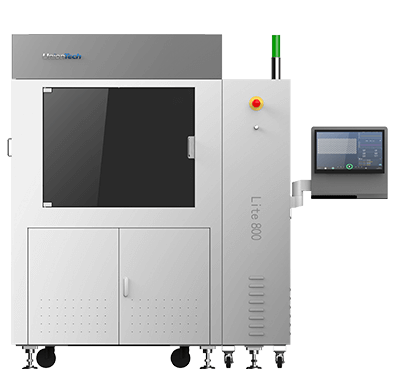

Lite800 Industrial SLA 3D Printer
Industrial SLA 3D Printer for Sale
Lite800 is an affordable large-format professional SLA 3D printer, compatible with a variety of 3D printing materials for large-batch printing. High efficiency, high precision, high stability. Using variable spot and split design to provide a one-stop solution for large-format integral printing, small-format for large-batch printing.
Lite800 Technical Data
|
Build Volume |
800 × 800 × 550 mm 31.5 × 31.5 × 21.7 in |
|
Accuracy |
Dimension <100 mm: ±0.15 mm</span> Dimension ≥100 mm: ±0.15% x Dimension |
|
Layer Thickness |
0.07-0.25 mm |
|
Laser |
355 nm, solid-state frequency tripled Nd: YVO₄ |
|
Beam Focus |
Dynamic & Variable |
|
Beam Size |
0.12-0.8 mm |
|
Material |
Compatible with commercial available resins for 355 nm stereolithography |
|
Scanning Speed |
8-15 m/s |
|
Controlling Software |
Union Tech Company™ RSCON |
|
Data Preparation Software |
Polydevs |
|
Operation System |
Windows 10 |
|
Input File Format |
.usp |
|
Network Type and Protocol |
WiFi, Ethernet Using MQTT, HTTP, TCP |
|
Electrical Requirements |
200-240 VAC, 50/60 Hz, Single phase |
|
Rated Power |
2.8 kVA |
|
Systems Control |
Closed-loop |
|
Temperature Range |
72–79 °F (22–26 °C) |
|
Maximum Change Rate |
1 °C/hour |
|
Relative Humidity |
< 40% |
|
Machine Size (W x D x H) |
1555 × 1445 × 2215 mm |
|
Machine Weight |
1050 kg |
|
Initial Resin Weight |
560 kg |
|
Resin Vat |
Manual / Fixed |
|
Processing and Finishing |
Post-Curing Unit (optional) |
|
Warranty |
12 Months |
|
Regulatory Conformity |
CE / UKCA |
