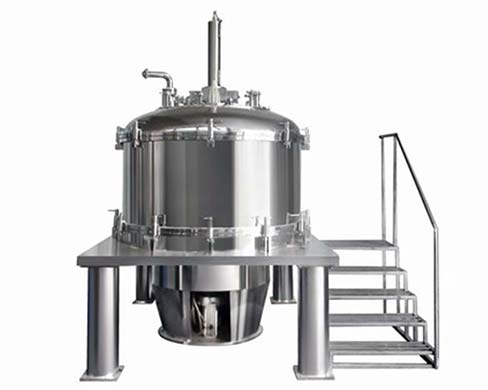

LLGZ PULL BAG SCRAPER BOTTOM DISCHARGE CENTRIFUGE
L(P)LGZ vertical basket centrifuges are suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium-size grains solid. For example chemical industry products such as gypsum, ammonium sulfide, bluestone, potassium chloride, borax, dyestuff, resin, pesticide, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection, etc.
SPECIFICATION OF LLGZ PULL BAG SCRAPER BOTTOM DISCHARGE CENTRIFUGE
Item/Model |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
L(P)LGZ |
Drum diameter (mm) |
800 |
1000 |
1250 |
1350 |
1400 |
1600 |
1680 |
1800 |
Drum Height (mm) |
400 |
500 |
500/630 |
630 |
700 |
800/720 |
740 |
800 |
Drum volume (L) |
80 |
165 |
310/400 |
445 |
560 |
800/720 |
900 |
1000 |
Loading capacity (Kg) |
100 |
210 |
400/520 |
534 |
672 |
1000/870 |
1125 |
1200 |
Max. Speed (r/min) |
1500 |
1200 |
1000/1200 |
1200 |
1150 |
850 |
850 |
800 |
Max. Separating factor (N) |
1007 |
805 |
698/1006 |
1086 |
1033 |
646 |
646 |
645 |
Motor power (KW) |
7.5 |
15 |
18.5/22 |
30 |
30 |
37 |
37 |
55 |
Size including shock absorber (mm) |
1700 ×1400 ×2064 |
2100 ×1600 ×2200 |
2300 ×1800 ×2500 |
2600 ×2000 ×2900 |
2600 ×2000 ×3200 |
3000 ×2400 ×3510 |
3000 ×2400 ×3100 |
3230 ×2630 ×3850 |
Weight (Kg) |
2100 |
3800 |
5600 |
6000 |
6500 |
12000 |
12500 |
16200 |
LLGZ Working principle
During the process of discharging, the scraper acts, under the impact of it most products are discharged through the blanking hole at the bottom of drum to the outside. The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.
Highlights of LLGZ Pull Bag Scraper Bottom Discharge Centrifuge
01.
Automatic frequency speed control.
02.
The vertical basket centrifuge has all advantages of common scraper centrifuge.
03.
Full-automatic operation for shaking bag falling off and reset.
04.
The filter bag can be moved up and down inside the drum to produce oscillation effect and remove the remnant filter cake thoroughly.
05.
Big clamshell or whole shell reversible type are achievable according to users' demands.
06.
The automatic residual cakes removing device is optional(have owned the national patent).
As a professional industrial centrifuge machine manufacturer, Saideli provides industrial centrifugal dryer, bottom discharge centrifuge machine, industrial centrifuge machine and etc. Want to know more about bottom discharge centrifuge working, contact us.
