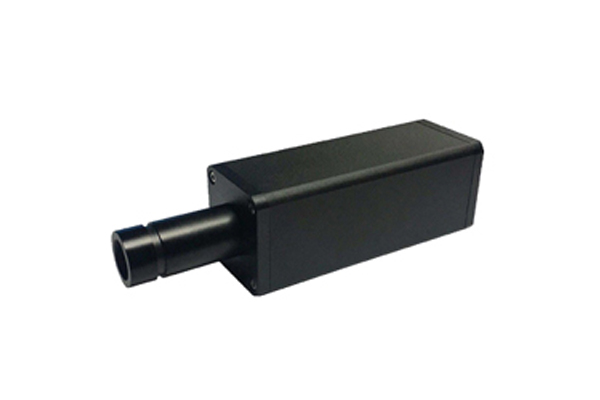

LM-7M Luminance Meter

LM-7M Luminance Meter, filter near CIE Y curve, which is the best luminance measurement device. High sensitive silicon photodiode sensor for short distance and high precision luminance measurement. Luminance colorimeter measurement as low as 0.001cd/m2, standard measurement software, instrument continuous and interval measurement via computer control and view data through software.

LM-7M Luminance Meter Overview

LM-7A Luminance Meter LM-7A Luminance Meter, optional desktop controller, robust and precise measurement devices, LCD display designed to show measurement values directly. The instrument can be calibrated and the measurement values are consistent with BM-7A/CS-2000. Conventional used for Luminance measurement on the production line. Optional probes with different measuring diameters. RS232 interface for remote monitoring of computer. Widely used in backlight modules, LCD displays, OLED, various FPD, and optical material measurement.

LM-7M Luminance Meter Characteristic

High Sensitive

High Sensitive Silicon Photodiode Sensor

Low Noise, High Sensitive Board Design

Luminance Measurement

Luminance as low as 0.001cd/m2

High Speed High Accuracy

Iterative Precision: ±1%(Lv)

Accuracy: ±3%(Lv)

Sampling rate up to 100Kbs

LM-7M Luminance Meter Advantage

Luminance, GAMMA And Flicker

Filter near CIE Y curve

Flicker

Accurate Measurement with High Frequency

Simultaneous measurement FMA and JEITA modes

Software

Standard measurement software, instrument continuous and interval measurement via computer control and view data through software .

RayClouds has been committed to photoelectric measurement industry since 2009. A experienced team specialized in optoelectronics and electronics field, including software development, mechanical design and service team.

Professional optical instruments and display measurement system, which widely used in the measurement of LCD TV, Backlit module, Cellphone and computer screen Display, LCD Display, Automotive and Aerospace Display, OLED, LED light source, Street lamps, Light Guide, Lighten film, Reflecting film etc.

Based on the specific requirements of customers. We not only provide various standard optical instruments, but also provide a customized system integration solution.
