Long Period Fiber Grating

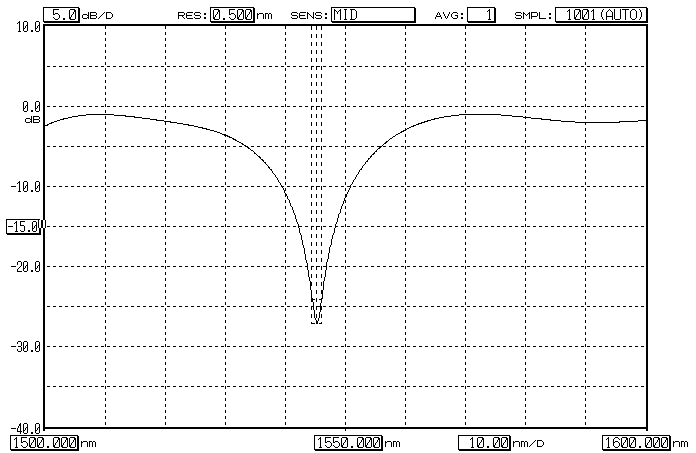

Long period fiber bragg grating (LPFG) is formed by the periodic refractive index modulation in the fiber axis, and its period is generally larger than 100µm. Its coupling mechanism is: the fundamental mode of the fiber core transmitted forward is coupled into the cladding mode of the forward transmission of several specific wavelengths, and the cladding mode is quickly lost, so the LPFG basically has no retroreflection, and in its transmission there are several absorption peaks at specific wavelengths in the spectrum.
Features Of long period fiber grating
No Reflection Type
Low Insertion Loss
Application Of long period grating
Notch Band Filter
GFF for EDFA
Optical Fiber Sensing
Specification Of Long grating period
|
Parameter |
Unit |
Value |
|
Center Wavelength |
nm |
C+L |
|
Transmission Loss |
% |
>90 |
|
Bandwidth (FWHM) |
nm |
1~3 |
|
Period |
μm |
550 |
|
LPFG Length |
mm |
20~30 |
|
Tensile Strength |
kpsi |
>100 |
|
Fiber Type |
-- |
Single-Mode |
|
Fiber Coating |
-- |
Acrylate |
|
Pigtail Length |
m |
Standard 1m both ends, or custom |
|
Optical Connector |
-- |
Bare Fiber, FC/APC, SC/APC, or custom |
There are many fiber optic sensing companies, but we are one of the best choices for you.
